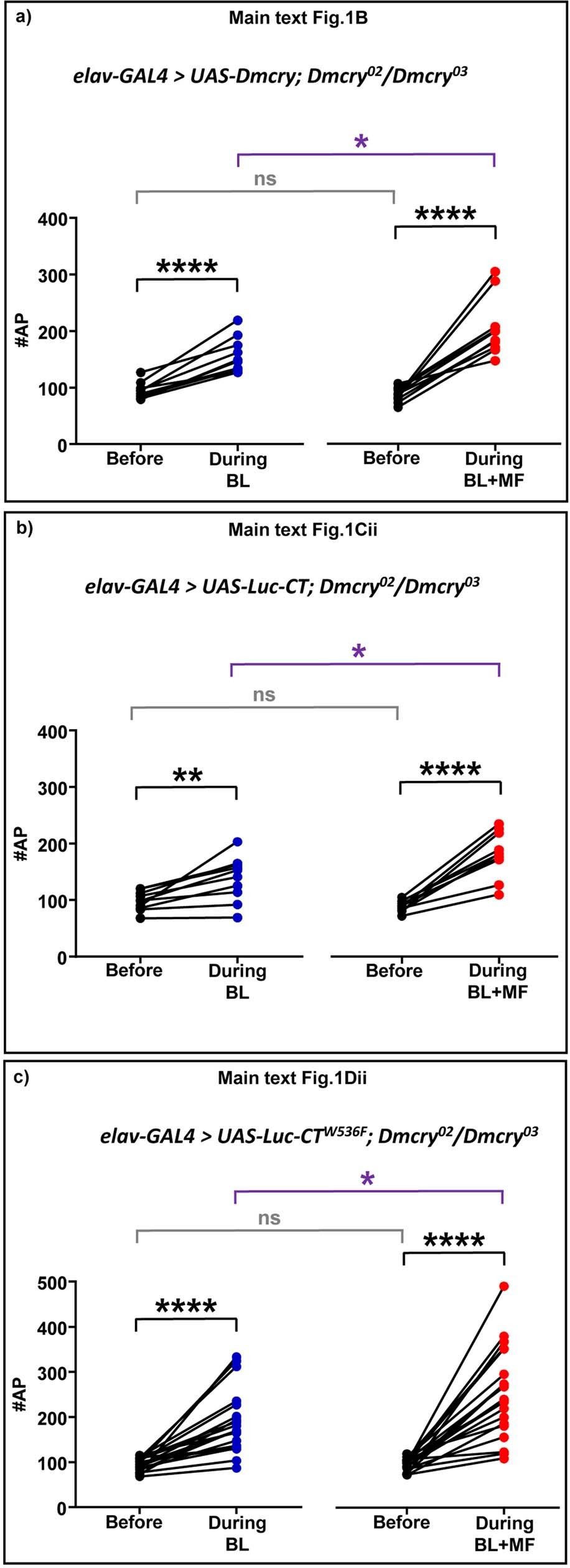

Extended Data Fig. 1: Supporting electrophysiological data for main text Fig. 1.
From: Essential elements of radical pair magnetosensitivity in Drosophila
(a). Raw action potential (AP) counts for aCC neurons expressing DmCRY, BL: n = 10, BL+MF: n = 10 (b). Luc-CT, BL: n = 10, BL+MF: n = 10 or (c). Luc-CTW536F, BL: n = 20, BL+MF: n = 20, recorded in the 15 s before and 15 s during exposure to BL or BL±MF. These data were used to derive firing-fold (FF) change reported in main text Fig. 1. Paired t-tests – two tailed – were used to compare AP counts before vs. during for cells exposed to BL (left hand graph) or to BL±MF exposure (right hand graph). MF-potentiation between the two groups was tested by unpaired t-test – two tailed (different cells). The figure number at the top of each panel represents the main text figure supported. The reported n for each electrophysiological recording is derived from independent cells from biologically independent animals. ns p ≥ 0.06, *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001. See main text Fig. 1 for FFon/FFoff ratio comparisons.
