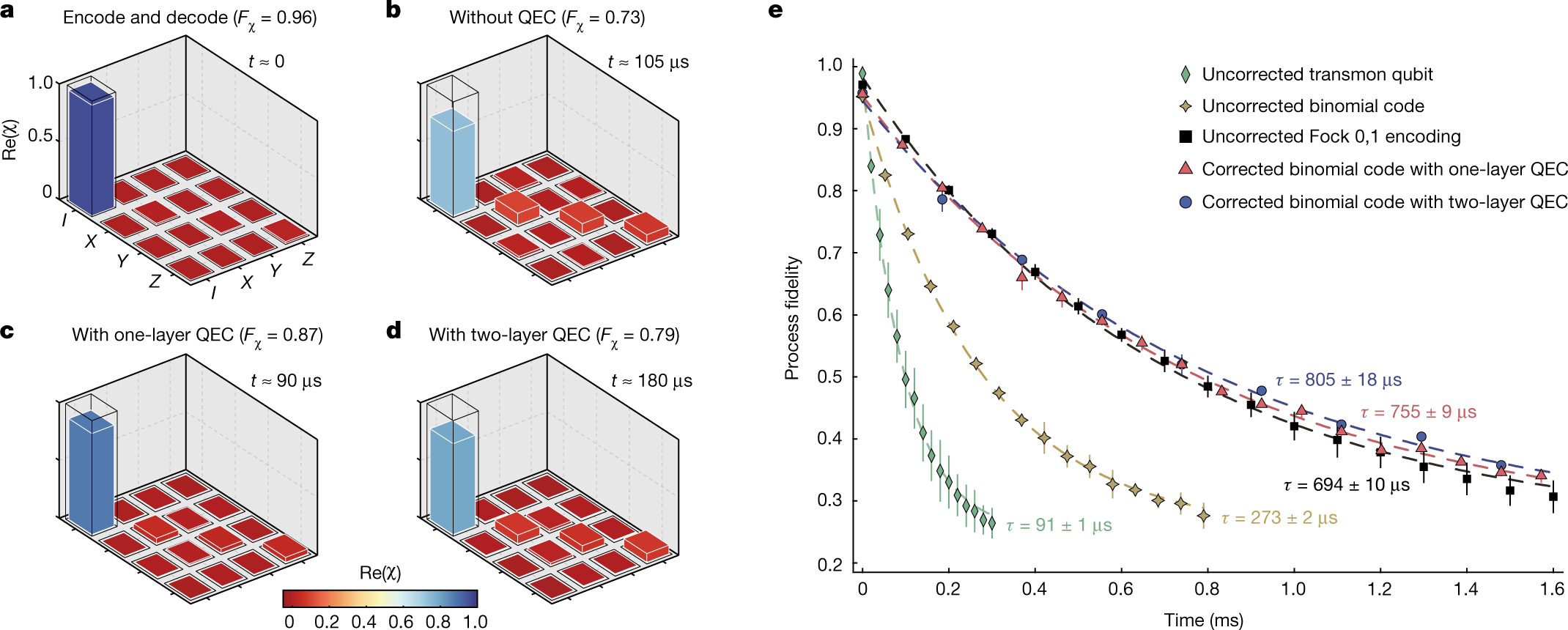

Fig. 3: Performance of repetitive QEC operations.
From: Beating the break-even point with a discrete-variable-encoded logical qubit
