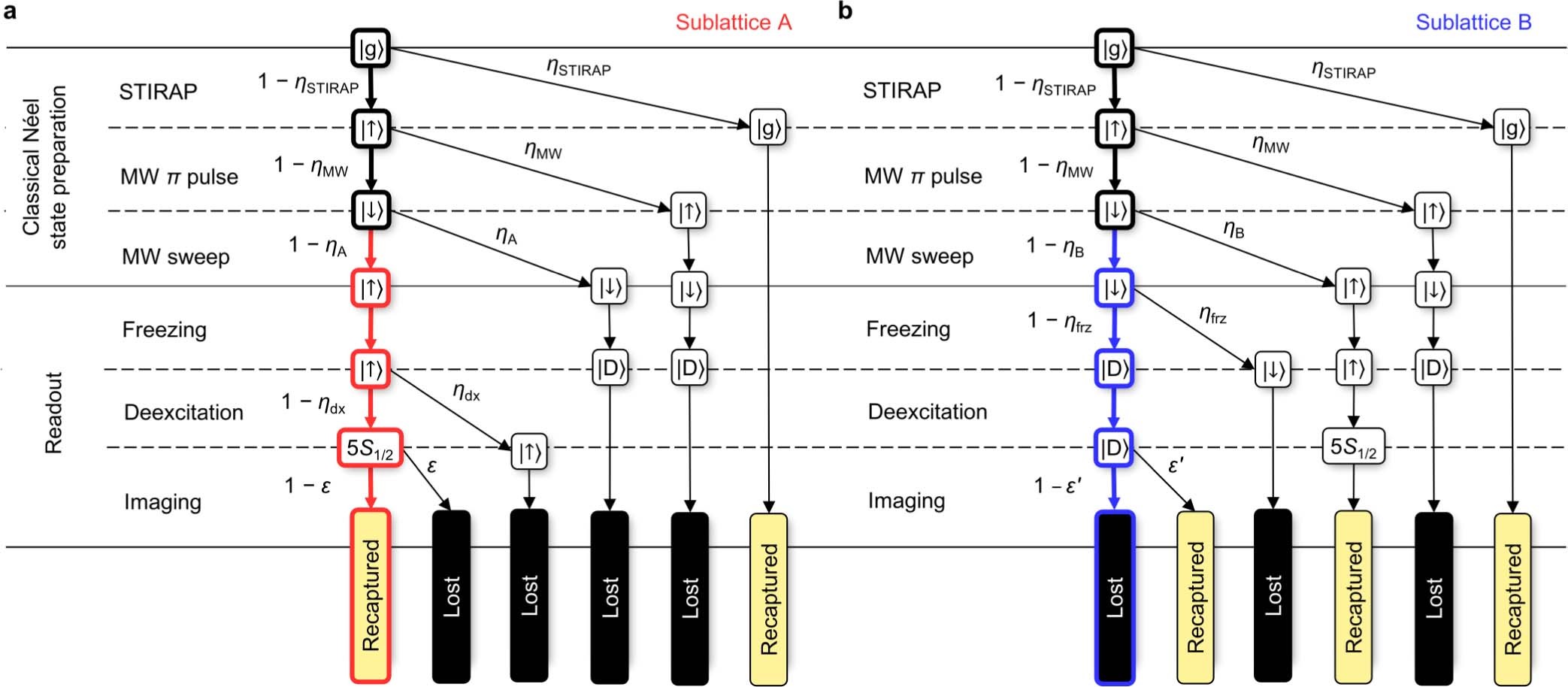

Extended Data Fig. 2: Simplified error tree associated to the preparation of the initial Néel state, for a the atoms in sublattice A (non-addressed), and b in sublattice B (addressed).
From: Continuous symmetry breaking in a two-dimensional Rydberg array
For simplicity, the events with a probability of order 2 or higher in the ηi, ϵ, \({{\epsilon }}^{{\prime} }\) are disregarded.
