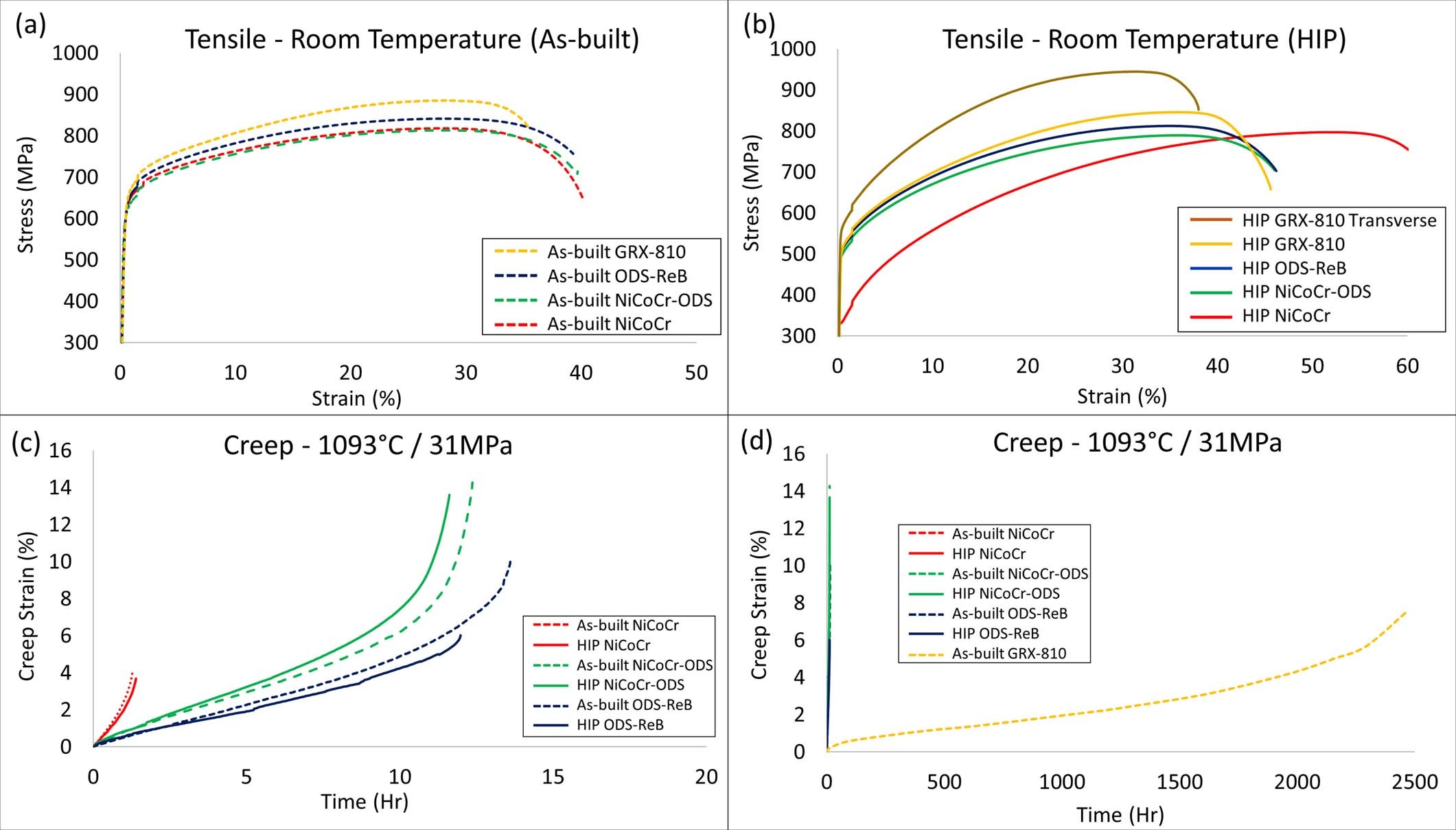

Extended Data Fig. 6: Mechanical tests of NiCoCr-based alloys.
From: A 3D printable alloy designed for extreme environments
a,b, Engineering stress-strain curves at room temperature for the as-built alloys (a) and for HIP alloys (b). The step between 1 % and 2 % strain results from an increase in the tensile strain rate which is consistent with ASTM E8 standard. c, 1,093 °C creep curves for as-built and HIP NiCoCr, NiCoCr-ODS, ODS-ReB at 30MPa. d, The same tests with GRX-810 curves included.
