Fig. 4: Time dependence of optical properties.

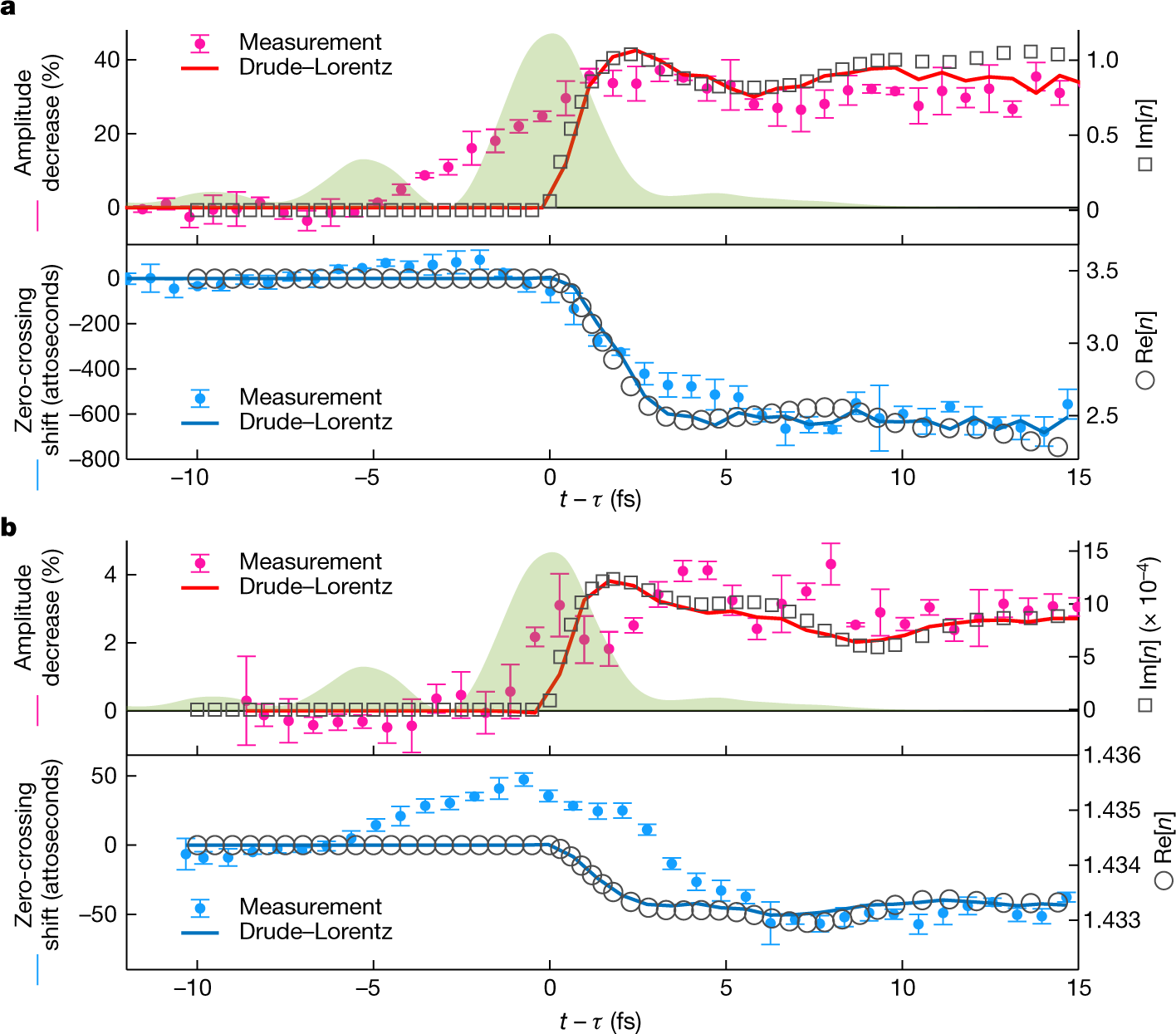

From: Dynamic optical response of solids following 1-fs-scale photoinjection
