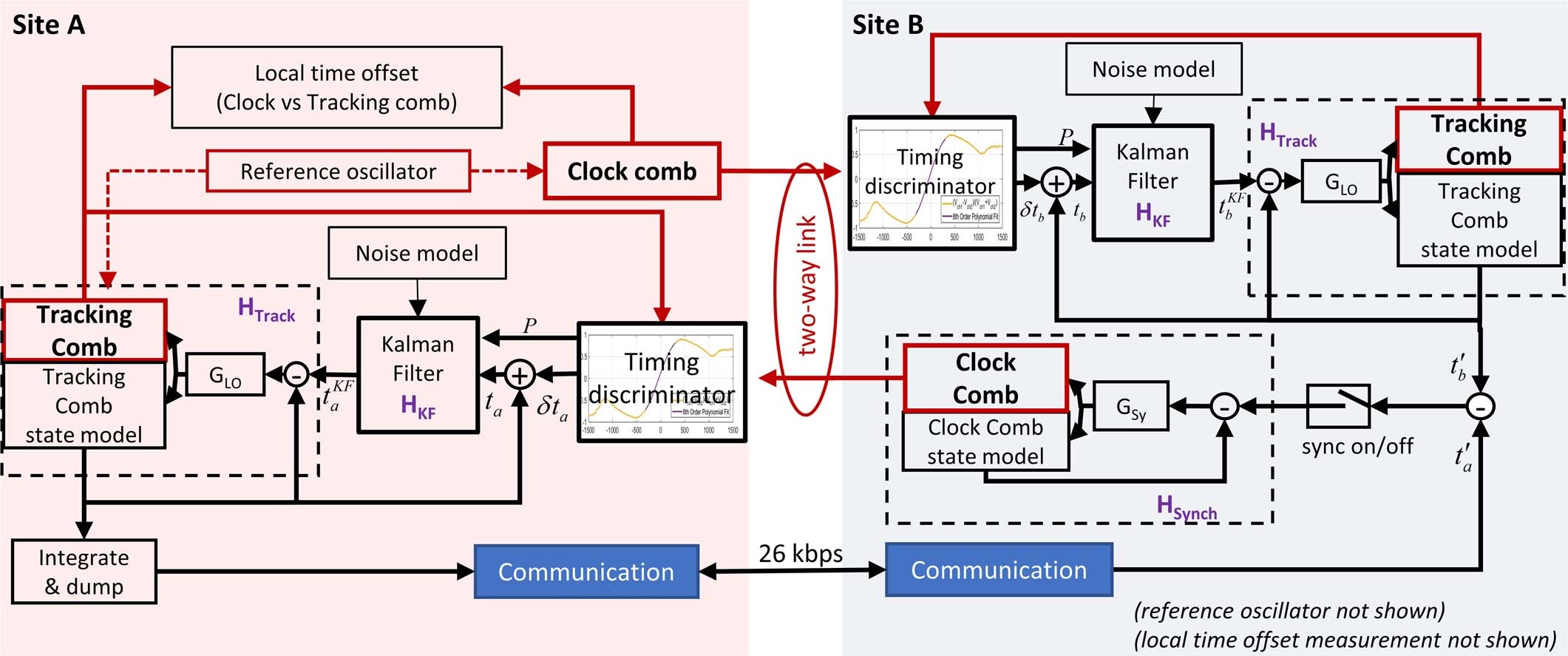

Extended Data Fig. 3: System diagram emphasizing signal processing.

From: Quantum-limited optical time transfer for future geosynchronous links

Extended Data Fig. 3: System diagram emphasizing signal processing.

Each site has a local reference oscillator (cavity stabilized laser), to which both the clock comb and tracking comb are self-referenced. As shown for site A, after both the clock and tracking combs are phase-locked to the reference oscillator, they have an arbitrary local time offset between each other. This local time offset is directly zeroed by digitally adjusting the tracking comb timing until there is a maximum heterodyne overlap with the clock comb pulses. Subsequent timing values for the local tracking comb are then referenced to the local clock comb. After acquisition, the timing discriminator measures the (small) time offset δta between the incoming clock comb and local tracking comb. This timing difference is summed with the tracking comb time offset, to generate an estimate of the incoming clock comb pulse time, ta. This estimate, along with the corresponding measured incoming power, is input to the Kalman filter, whose output provides an optimized, filtered estimate of the incoming clock comb pulse time, \({t}_{a}^{KF}\). This value is fed into a final feedback controller for the tracking comb, GLO. Due to the feedback loop, the tracking comb output itself (both the physical optical pulse time and the corresponding digital value), is now a filtered, estimated value of the incoming clock comb pulse timing with respect to the local clock comb pulse time. This value is transmitted over a communication link from site A to site B, where it is combined with the corresponding local value of tb to generate an error signal for the site B clock comb. When both sites have acquired their lock onto the incoming clock comb pulses, the final synchronization feedback controller Gsy is activated and the site B clock comb is actively synchronized to the site A clock comb, at their local reference point. The effective bandwidth of the Kalman Filter depends on the input power, and ranges from 10 Hz to 25 Hz. The bandwidth of the subsequent lock of the tracking comb (Htrack) is ~450 Hz. The bandwidth of the synchronization lock (Hsynch) is ~15 Hz. The communication link is over rf coaxial cable here. For a future point-to-point link, it would be over free space by either rf or optical as in ref. 15. The message rate (for update of ta) is 400 Hz and the total bit rate is 26 kbps. red solid lines: optical comb pulses, red dashed line: CW optical laser light, black lines: digital values, P: input optical power.
