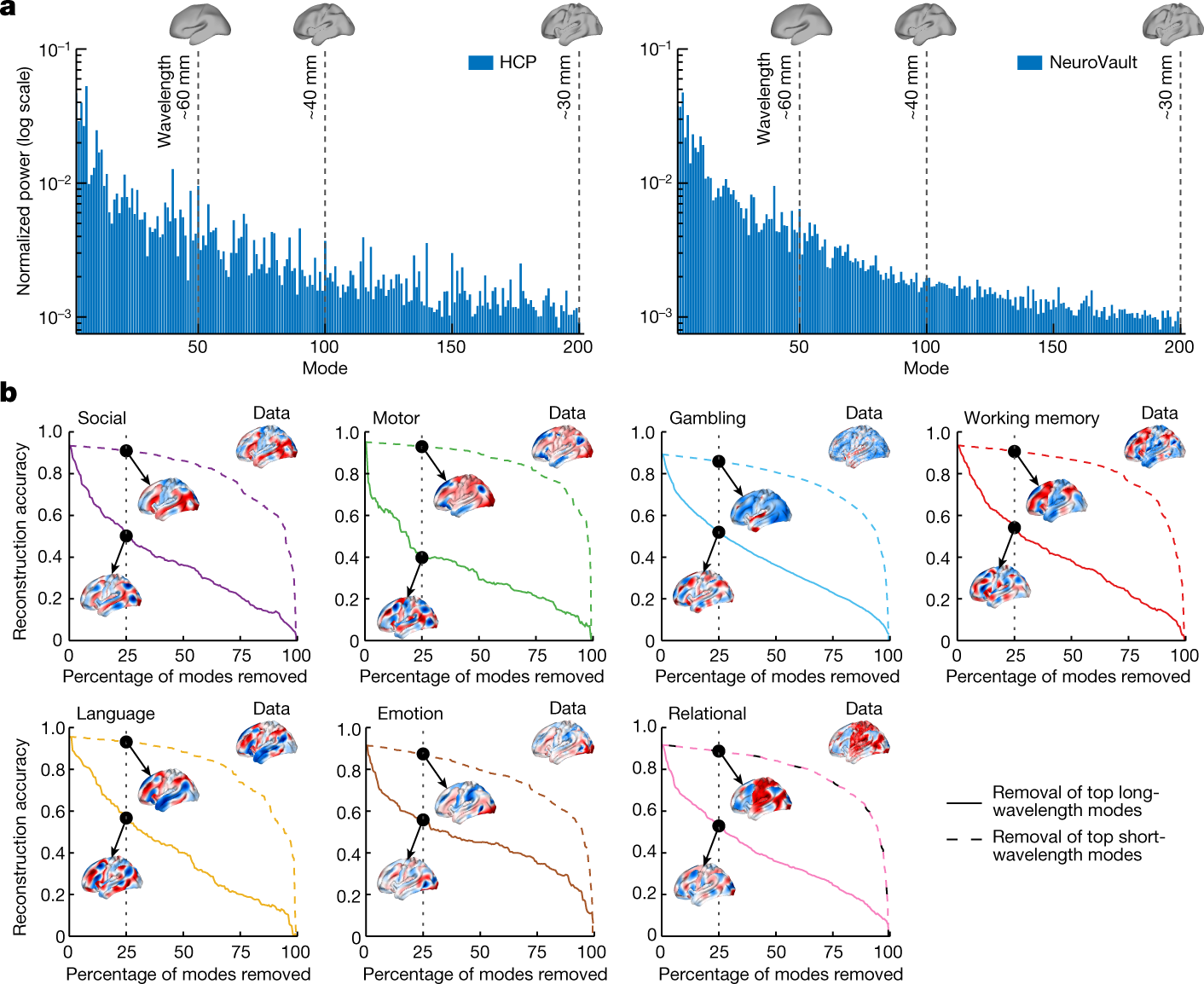

Fig. 3: Task-evoked activity excites long-wavelength modes.

a, Normalized mean power spectra of the 47 HCP task-contrast maps (left) and 10,000 contrast maps from the NeuroVault database (right). Insets show cortical surface reconstructions demonstrating spatial scales relevant to the first 50, 100 and 200 modes corresponding to spatial wavelengths of approximately 60, 40 and 30 mm, respectively. Contrast-specific spectra for the seven key HCP task contrasts are presented in Extended Data Fig. 7. b, Reconstruction accuracy of the seven key HCP task-contrast maps as a function of the percentage of modes (among 200) removed in the reconstruction process. Solid and dashed lines correspond to removal of the top long- and short-wavelength modes, respectively. Insets show group-averaged empirical activation maps (data) and their reconstructions after removal of 25% of modes. Negative, zero and positive values are coloured blue, white and red, respectively.
