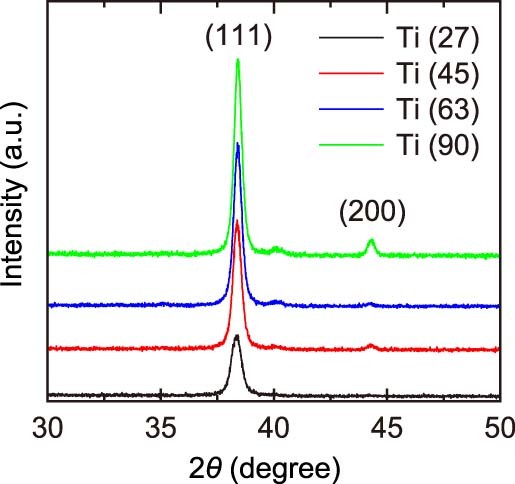

Extended Data Fig. 1: The crystalline structure of Ti films.
From: Observation of the orbital Hall effect in a light metal Ti
XRD θ-2θ scan of Ti films with the thickness of 27 (black line), 45 (red line), 63 (blue line), and 90 nm (green line). The XRD peaks at 38.4o and 44.3o indicate the (111) and (200) peaks of the face-centered-cubic phase of Ti, respectively.
