Extended Data Fig. 6: Raman spectroscopy measurements on Eu-1144.

From: Smectic pair-density-wave order in EuRbFe4As4

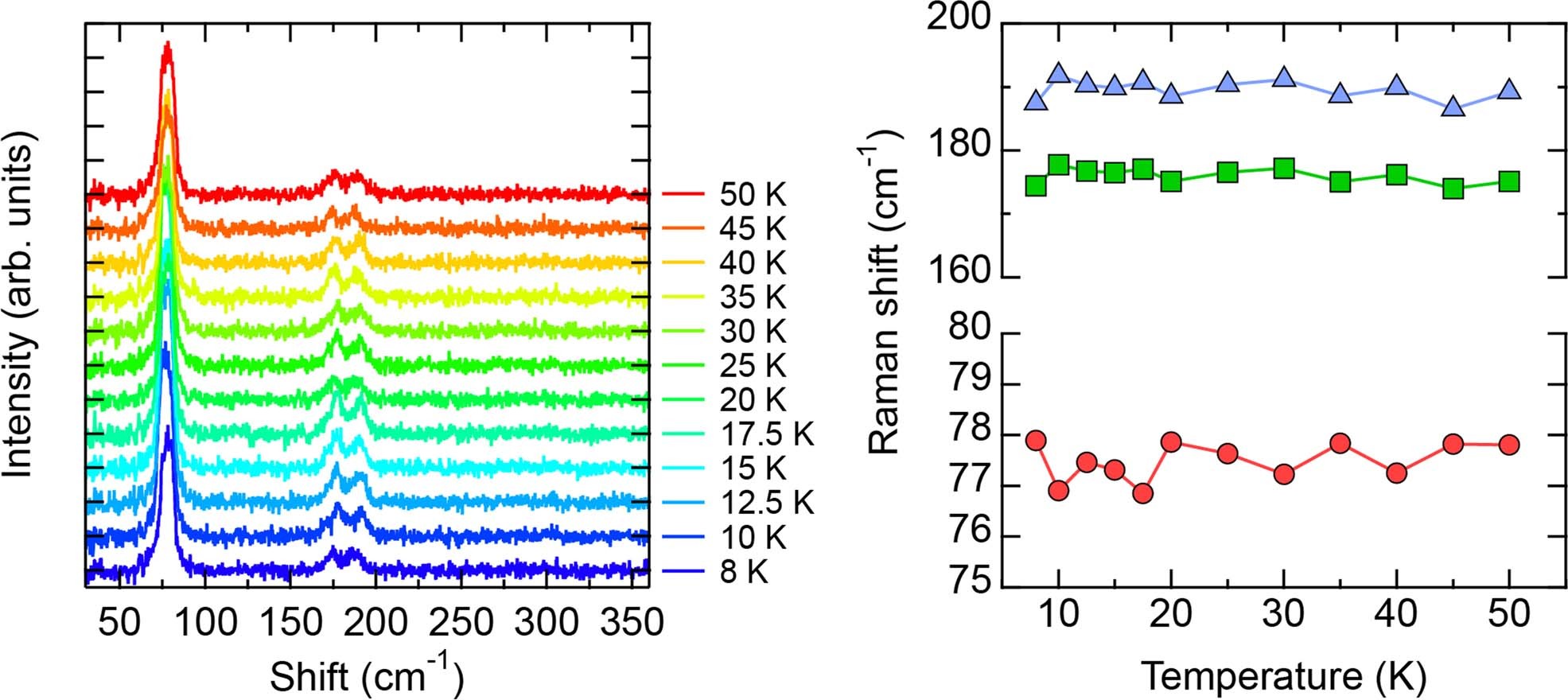

Extended Data Fig. 6: Raman spectroscopy measurements on Eu-1144.

The left panel shows Raman spectra at different temperatures with offsets for clarity. The right panel shows the wavenumbers of the observed modes as a function of temperature. No mode softening is seen around the magnetic transition temperature of 16 K, and no additional modes are observed below the magnetic transition temperature.
