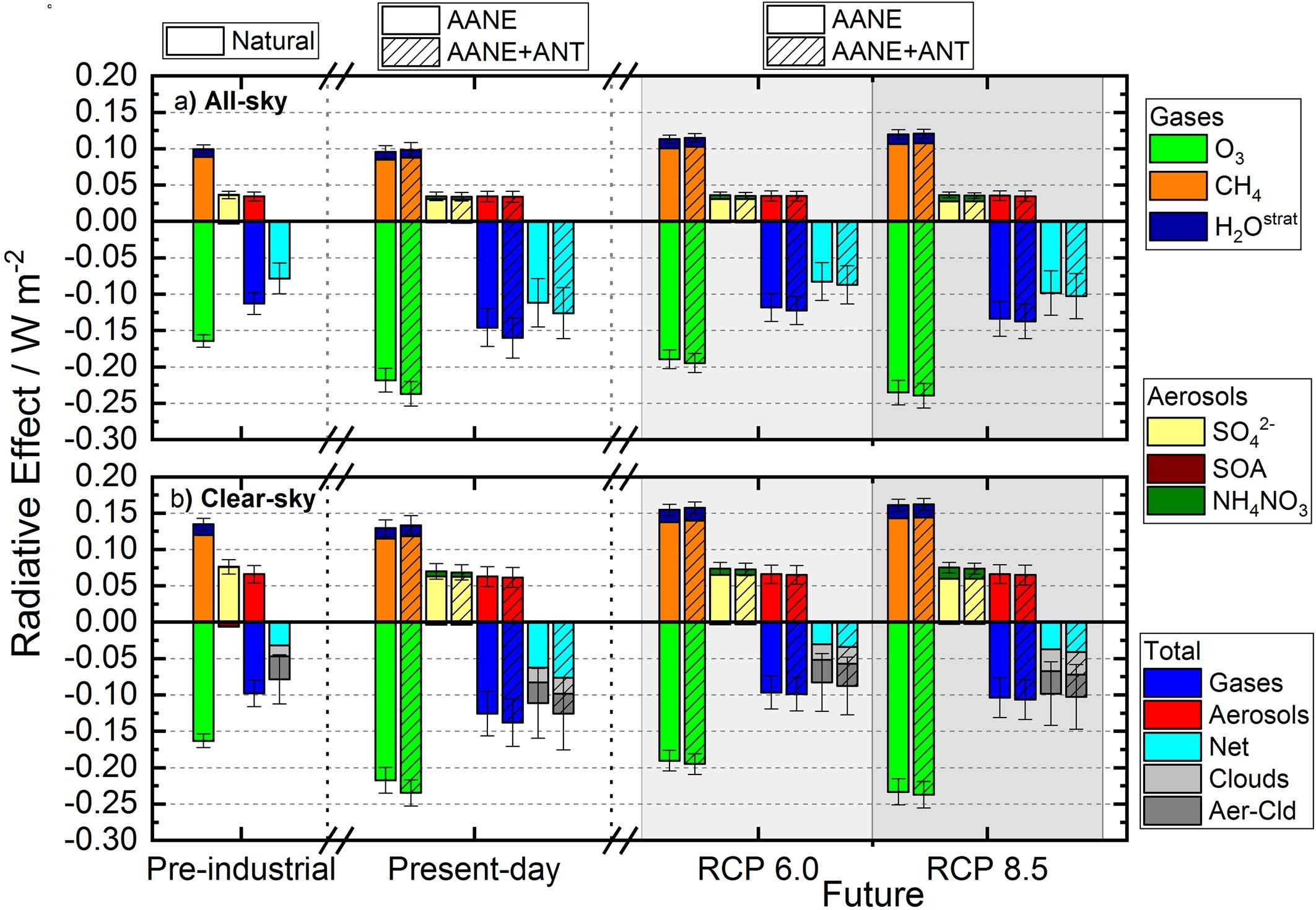

Extended Data Fig. 1: Radiative effect of SLH on short-lived climate forcers at the top of model.
From: Natural short-lived halogens exert an indirect cooling effect on climate
RE for the only AANE and AANE+ANT configurations are shown by empty and black-striped colored bars, respectively, for all-sky (a) and clear-sky (b) conditions. Results for the pre-industrial period are on the left and consider only natural halogen emissions, while the RE in year 2100 for RCP6.0 (light-grey shading) and RCP8.5 (heavy-grey shading) climate scenarios are shown on the right. The RE due to clouds and aerosol-cloud (Aer-Cld) interaction is shown on top of the net (gas+aerosol) effect on b. Comparison of only AANE and AANE+ANT results indicates that most of the RE due to SLH arise from the contribution of natural sources that have been anthropogenically amplified during present-day and end-of-the-century conditions. The uncertainty range for each species is computed as half of the difference between the maximum and minimum RE obtained for the complete set of model sensitivities for each individual time period (mean ± range/2) as described in the Supplementary Information (see Extended Data Table 5).
