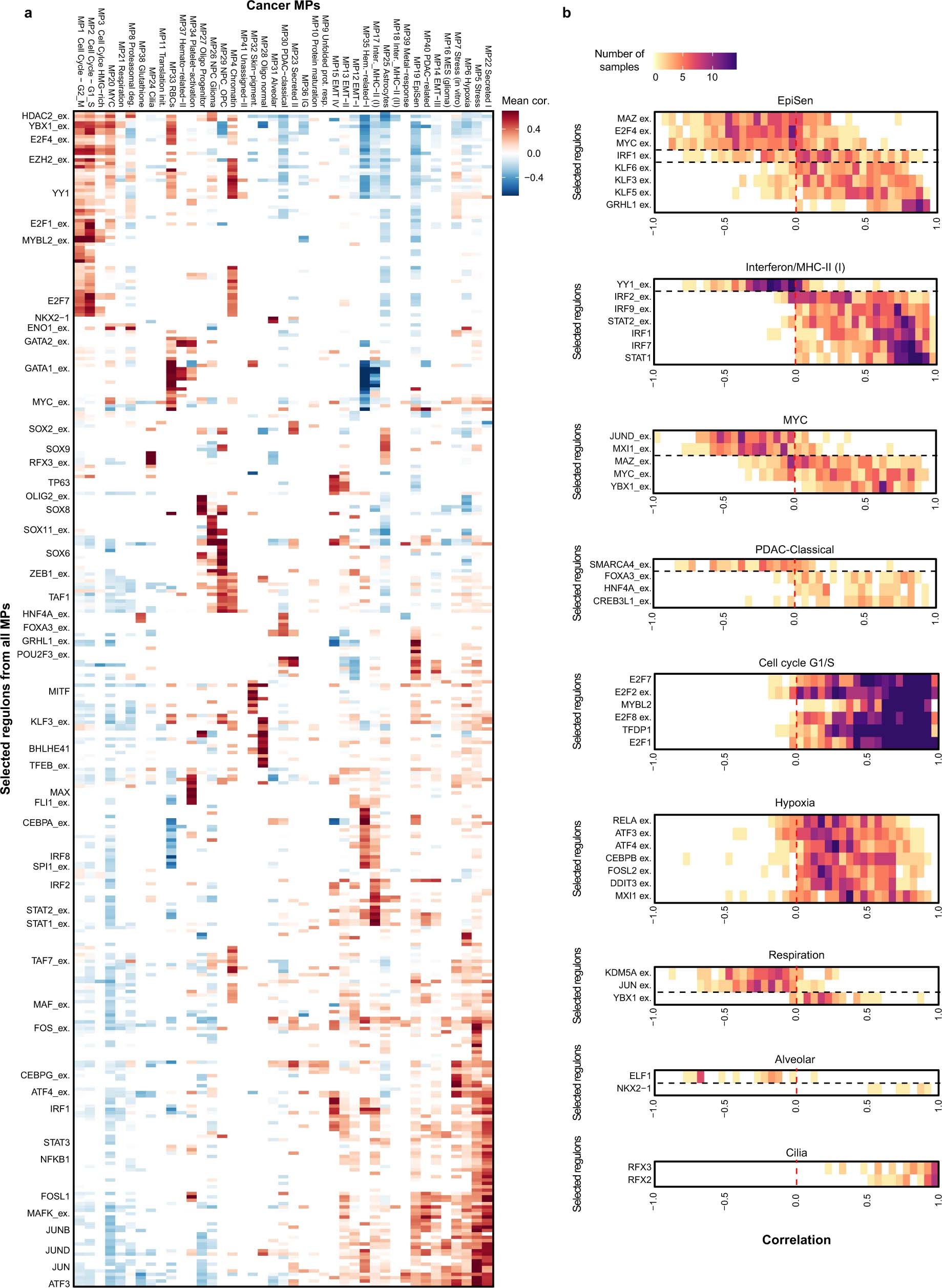

Extended Data Fig. 2: MP regulators inferred by SCENIC.
From: Hallmarks of transcriptional intratumour heterogeneity across a thousand tumours
(a) Heatmap showing the mean correlations between regulon scores and MP scores (correlations were calculated separately within each sample, and then averaged across samples). Regulons were included if they had a consistent association with at least one MP, defined as correlation above 0.5 (or below −0.5) in at least 10 samples or in at least 30% of the samples with that MP (see Table S6 for a list of such regulons). (b) Distributions of the correlations whose means are shown in a for selected regulons associated with nine MPs (each shown in a separate panel). ex., extended.
