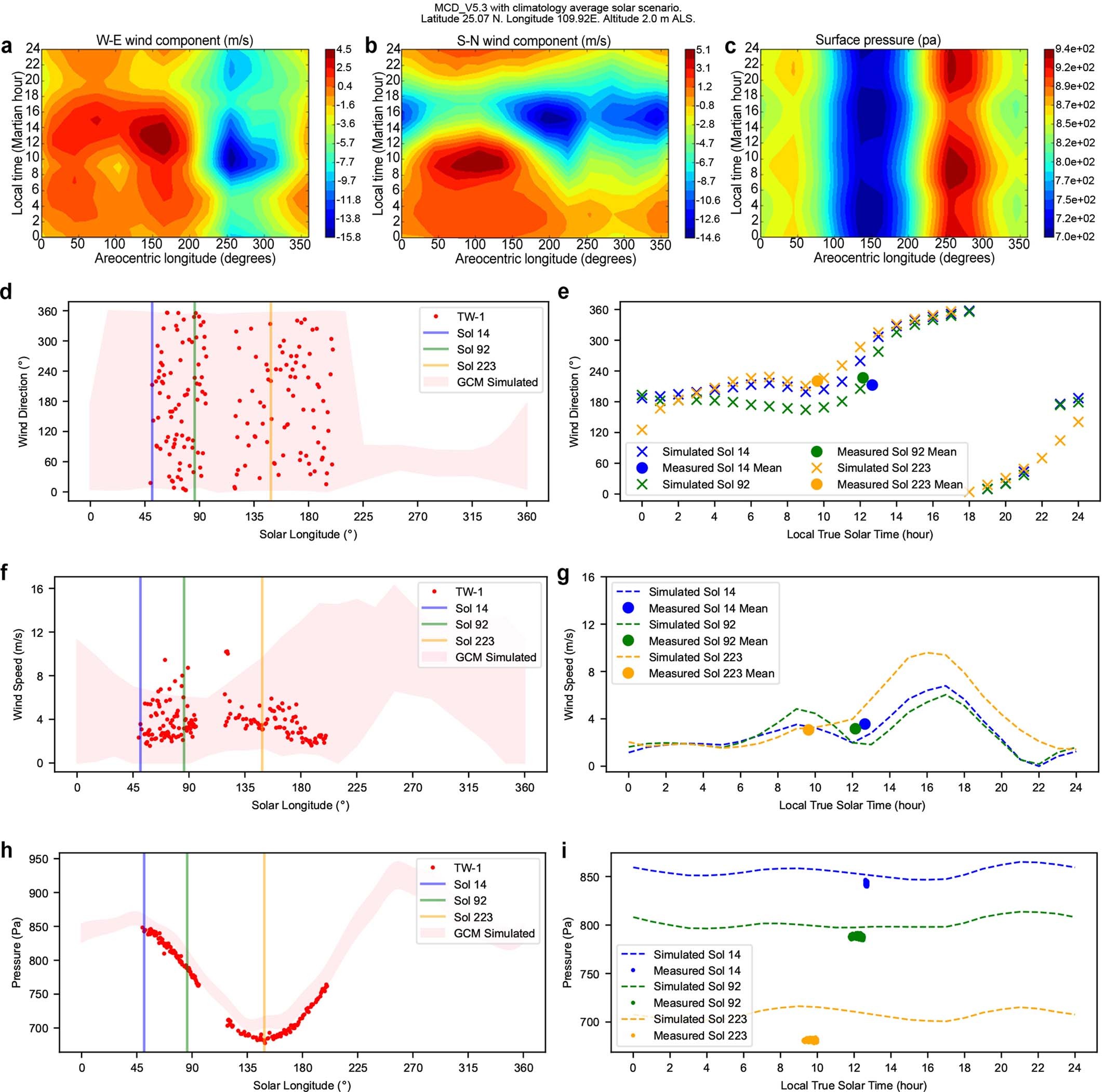

Extended Data Fig. 10: The surface wind directions, wind magnitudes and pressure at the Zhurong landing site.
From: Martian dunes indicative of wind regime shift in line with end of ice age
a,b, the GCM simulated W-E and S-N wind of average solar scenario. c, the GCM simulated pressure of average solar scenario. d,e, Comparison between simulated wind direction and measured wind direction by MCS. f,g, Comparison between simulated wind speed and measured daily average wind magnitudes by MCS. h,i, Comparison between simulated pressure and measured pressure by MCS. e,g,i, are the partial enlarged views at the vertical lines of d,f,h, respectively. These enlarged views reflect the daily variation of wind directions, wind magnitudes and pressure.
