Extended Data Fig. 2: Quality of the apo BCDX2 complex cryo-EM reconstruction.
From: Structural insights into BCDX2 complex function in homologous recombination

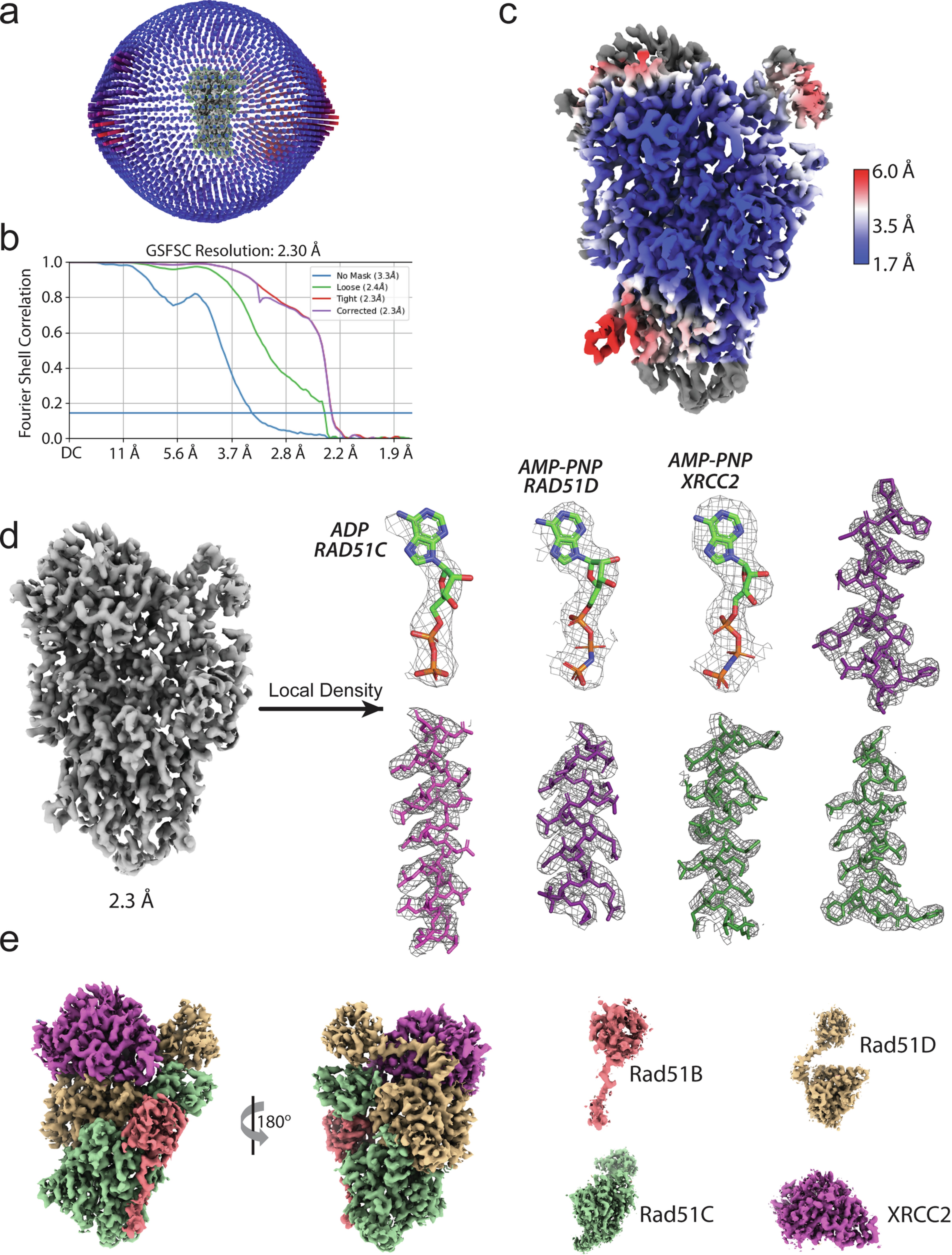

a, The final Euler angle distribution of particles used for 3D refinement. b, Fourier Shell Correlation (FSC) plot from two half maps, with an overall resolution of 2.3 Å as determined at 0.143 criterion. c, Local resolution map color-coded from lower (red) to higher resolution (blue). d, Overall map (left) and detailed views of local cryo-EM density for selected regions of the BCDX2 complex (right). e, Cryo-EM map of the BCDX2 complex with two views related by a 180° rotation about the y-axis (left). Maps of the individual subunits are shown to the right with RAD51B (pink), RAD51C (green), RAD51D (yellow), XRCC2 (purple).
