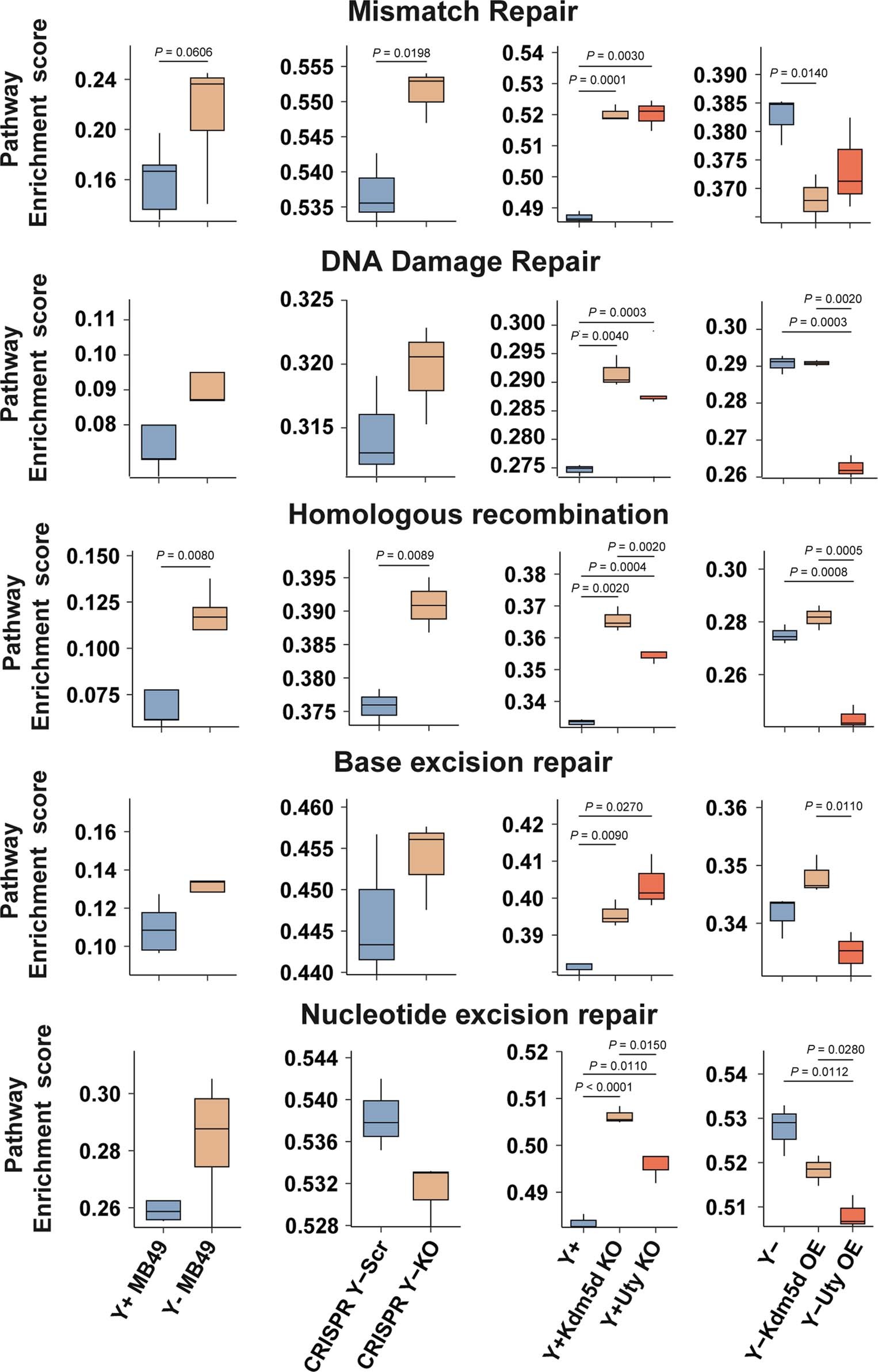

Extended Data Fig. 10: Elevated genomic instability in LOY, Uty KO, and Kdm5d KO MB49 lines.

From: Y chromosome loss in cancer drives growth by evasion of adaptive immunity

Extended Data Fig. 10: Elevated genomic instability in LOY, Uty KO, and Kdm5d KO MB49 lines.

Genome instability pathway enrichment scores using RNA-seq data from control and genetically modified MB49 cell lines (Y+ and Y- cells, n = 5 technical replicates. n = 3 for all other cell lines). Two-sided unpaired t-test. Boxplots represent the mean with first and third quartile data. Minimum and maximum datapoints are included.
