Extended Data Fig. 8: Representative constrained fit results for Landau fans acquired by sweeping Vm in the t1+10 device.
From: Mixed-dimensional moiré systems of twisted graphitic thin films

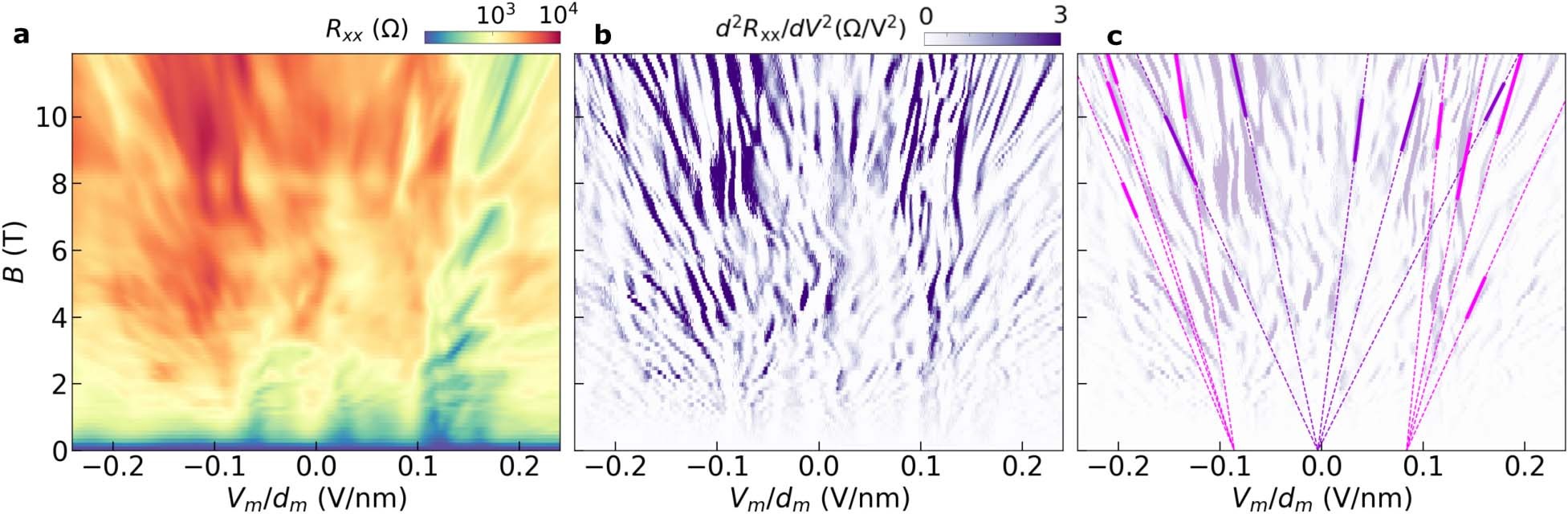

a, Landau fan diagram of Rxx in the t1+10 device, acquired by sweeping Vm with Vgr/dgr = 0.01 V/nm. b, Numerical second derivative of the data in a. The color scale is saturated to only show positive values, as in Extended Data Fig. 5. c, Results of the constrained fit overlaid on the second derivative data from b, with reduced opacity for clarity. Solid segments denote the range of magnetic field over which the QOs were fit, and the dashed segments denote the projection over the entire range of magnetic field.
