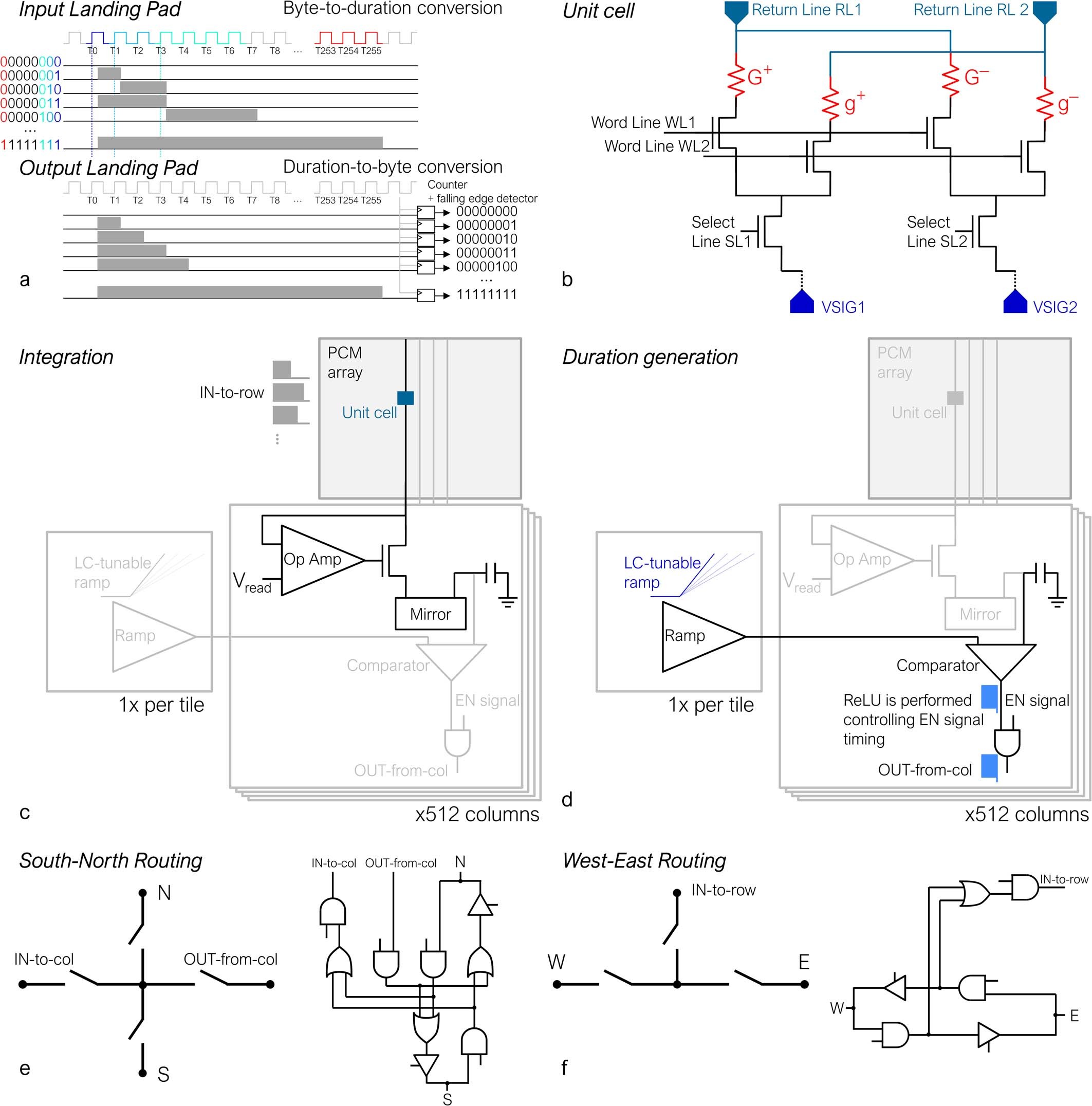

Extended Data Fig. 2: Analog circuits and routing configurations.
From: An analog-AI chip for energy-efficient speech recognition and transcription
(a) Input Landing Pad circuitry receives an 8-bit word, which is converted to a duration using a counter. Output Landing Pad circuitry receives one duration and converts it into an 8-bit word using 512 counters plus falling edge detectors. (b) Each tile has 512x512 unit cells, each consists of 4 PCM devices controlled by Word Lines and Select Lines driven by the tile West circuitry. During weight programming, Return Lines (RL) are driven at higher voltage (max 3V) and VSIG are grounded to enable PCM write. (c) During inference, in the integration phase, RL are grounded and one or both VSIG are biased at read voltage Vread = 0.3 V using a per-column operational amplifier. Current is then mirrored into a per-column capacitor. (d) For duration generation phase, capacitor voltage is compared against a shared and tunable ramp-voltage. The output of the comparator is a pulse with duration proportional to the voltage on the capacitor, gated by an EN signal using an AND gate. By properly tuning the timing of this EN signal with the Local Controller, activation functions such as ReLU or hard sigmoid can be implemented. (e) 512 durations are then sent into the parallel 2D mesh using a per-column South-North routing circuit. (This same circuit is also used to send pulses onto each column for PCM programming purposes). (f) Finally, West-East Routing enables durations to access another tile and/or to simply move across the tile. Since each borderguard can independently block or pass signals, complex routing patterns including multi-cast and even concatenation are supported.
