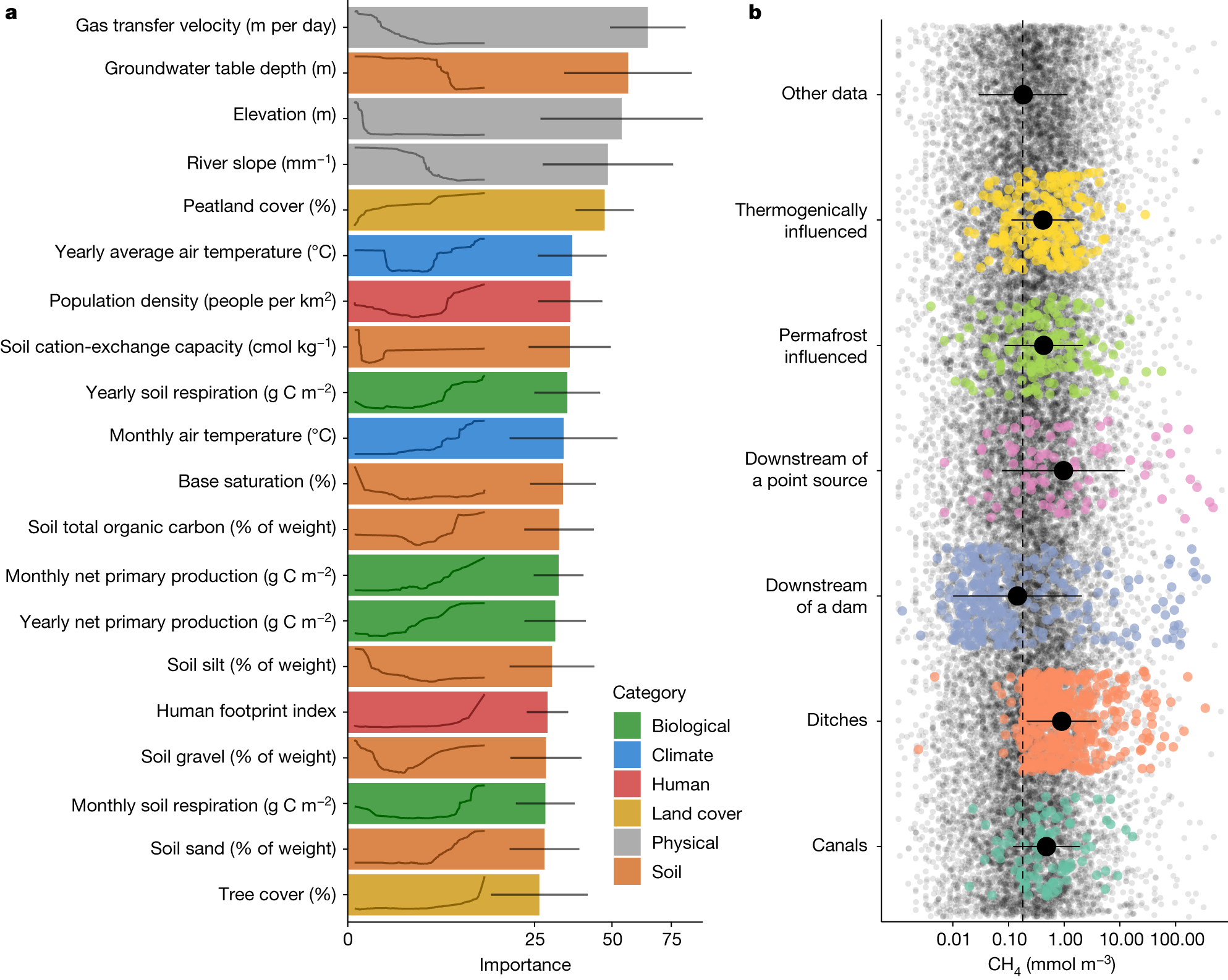

Fig. 2: Main drivers of CH4 concentrations in streams.
a, The 20 most important variables in the random forest model. The x axis shows the median importance across all monthly models (n = 12), with error lines representing standard deviation (s.d.); note the square-root transformation of the x axis. The line inside each bar is the partial dependence, which represents the marginal effect of a given feature (x axis) on predicted CH4 concentrations (y axis). These lines are a simplification of a more detailed version (Supplementary Information). b, CH4 concentrations of some site categories from GRiMeDB13 were excluded from the model as they were not captured in the hydrological model or were targeted observations not representative of catchment properties (Methods). The underlying jittered points represent all other observations in GRiMeDB, with the dashed line representing the average. Each category is colour-coded, with the black dot and a line representing the mean ± s.d.
