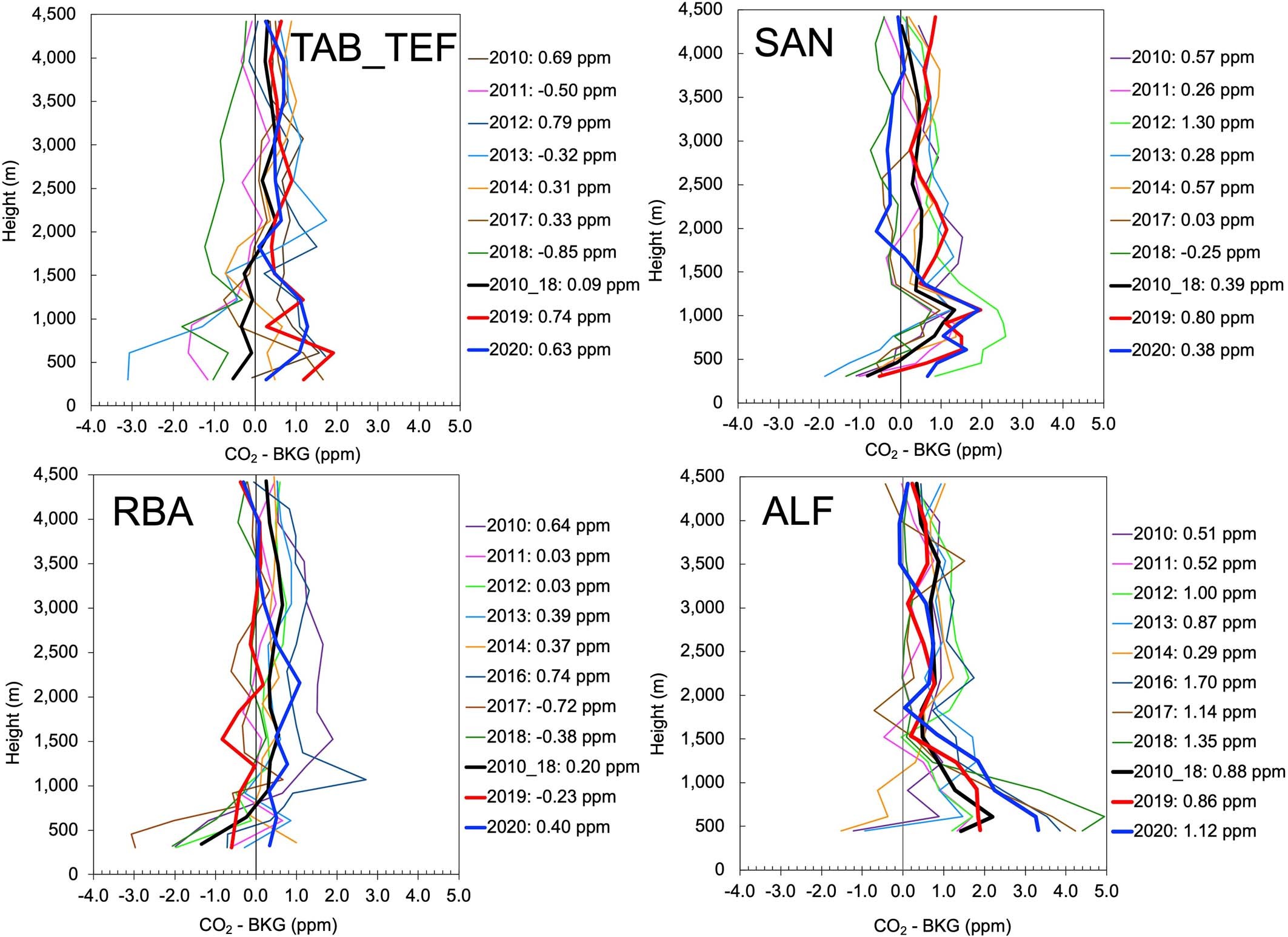

Extended Data Fig. 2: Annual mean ΔVPs per site.
From: Increased Amazon carbon emissions mainly from decline in law enforcement
Annual mean ΔVPs for each site TAB_TEF, SAN, RBA, and ALF for the time series (2010–2020), constructed from the annual mean vertical profile, in which the background was subtracted from each height, and each flask (see Methods). The thick black lines represent the 2010–2018 Amazonia sites mean vertical profiles, the thick red lines the 2019 mean and the thick blue lines the 2020 mean.
