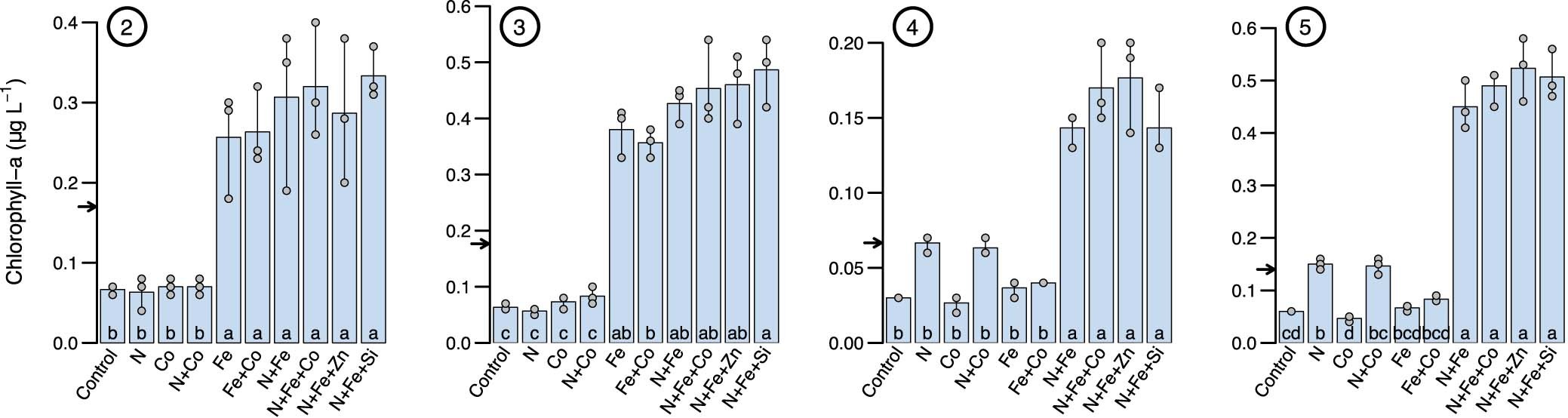

Extended Data Fig. 2: Chlorophyll-a responses in nutrient addition bioassay experiments.
From: Persistent equatorial Pacific iron limitation under ENSO forcing
Bar heights represent mean responses across three biological replicates. Dots show individual replicates and error bars show the range. Letters indicate the results of a statistical test, where bars labelled with the same letter have statistically indistinguishable means (one way ANOVA, α = 0.05, followed by Tukey posthoc test). Arrows indicate initial concentrations. Circled numbers are experiment sampling sites.
