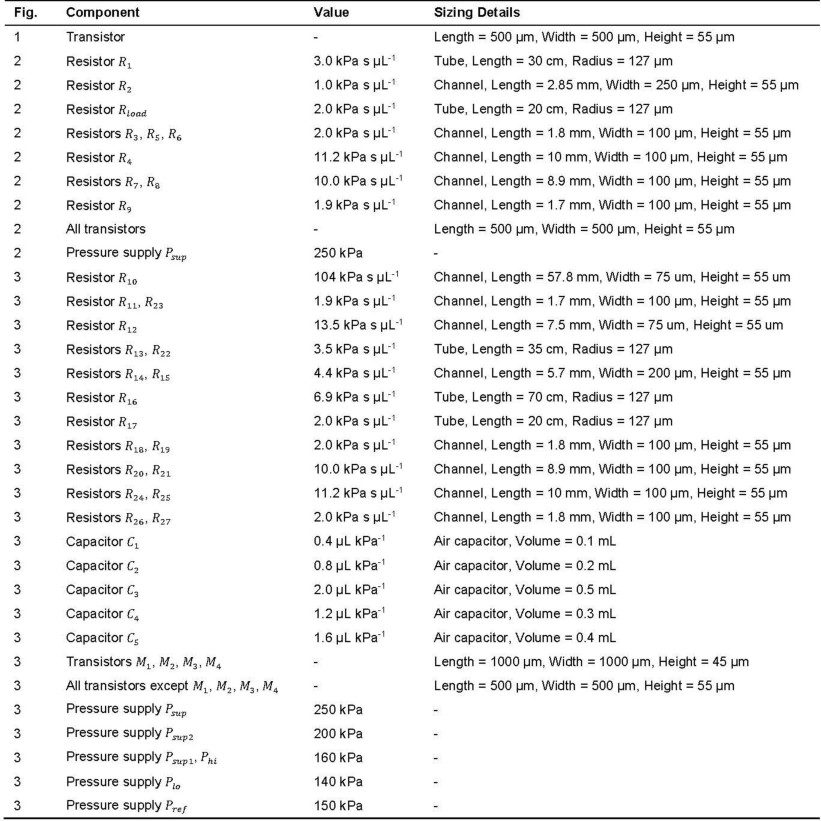

Extended Data Table 1 Circuit schematic component details

From: A microfluidic transistor for automatic control of liquids

  1. Specific values and sizes for the resistors, capacitors, transistors, and pressure sources used in the circuit schematics are provided. Resistors may be integrated on-chip using a serpentine channel (denoted “Channel”) with a rectangular cross-section, or incorporated into the tubing that leads to the chip ports (denoted “Tube”) with a circular cross-section. Resistances were calculated under laminar flow conditions using the Poiseuille equation47. 1 ml syringes filled with a fixed volume of air were used as capacitors to atmosphere. Fluidic capacitances were calculated using Boyle’s law. For more information, please see the Methods section.
