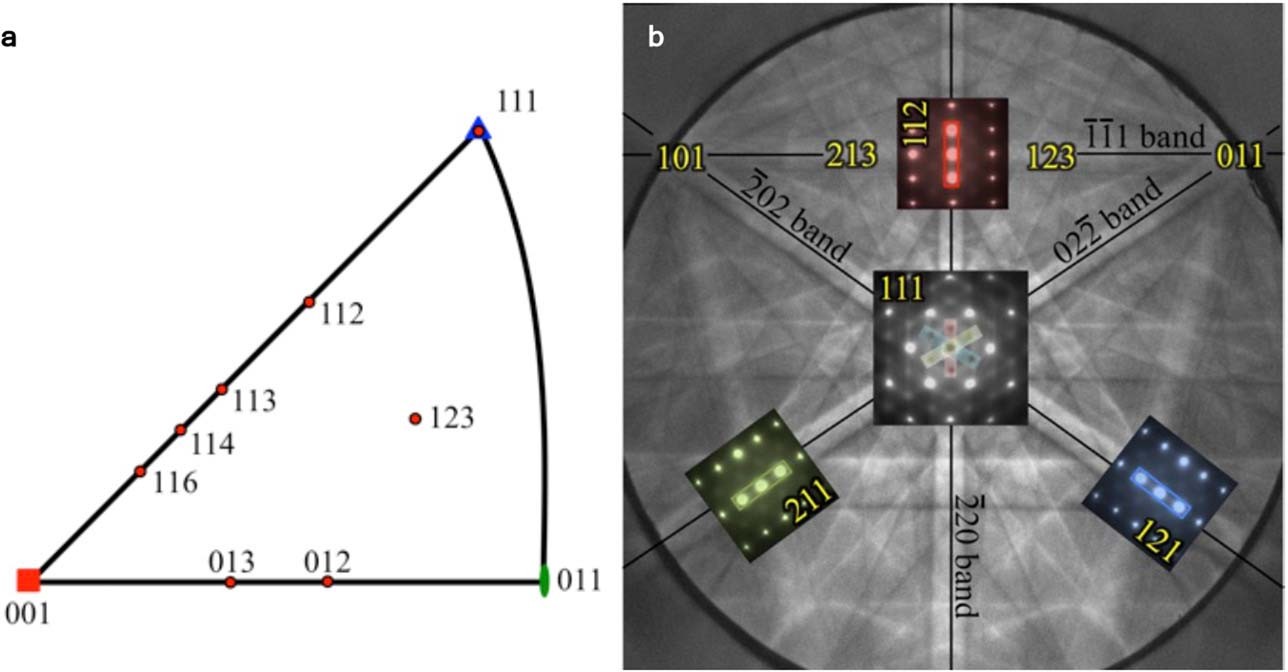

Extended Data Fig. 4: Crystallographic relation between <112> and <111> Zas.
From: On the origin of diffuse intensities in fcc electron diffraction patterns
(a) Stereographic triangle showing the zone axes containing {422} and {311} reflections that were examined and (b) schematic representation of the tilting experiment showing the <112> SADPs relative to the <111> (taken from Co-28.5Cr-6Mo) and overlaid on an EBSD Kikuchi map. The {111} reflections were tracked from the B = [112] pattern into the B = [111] pattern.
