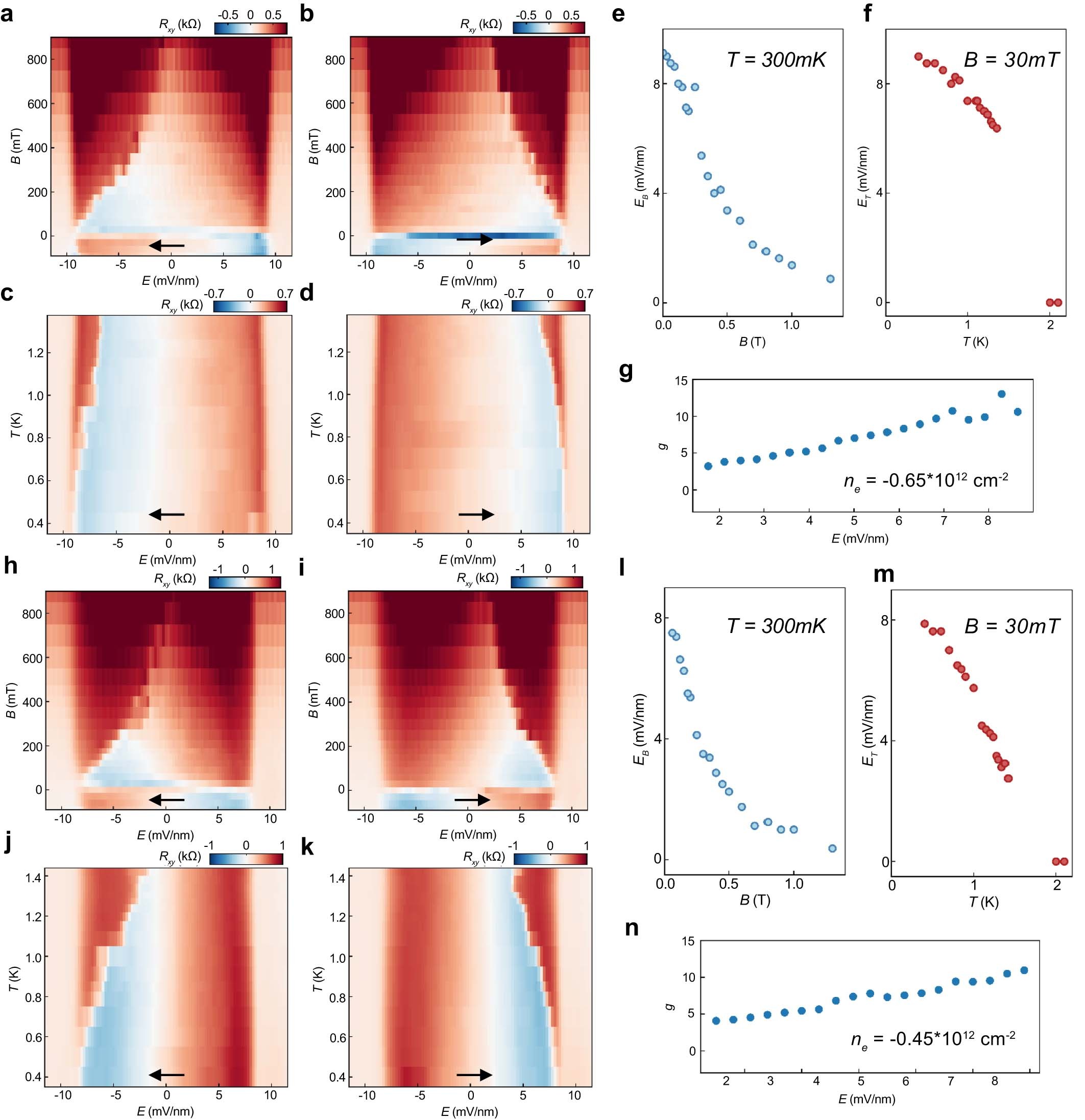

Extended Data Fig. 7: Evolution of the ‘butterfly’ as a function of magnetic field and temperature at n_e=−0.65*10¹²cm⁻² and n_e=−0.45*10¹²cm⁻².

a & b. R_xy as E is scanned at different magnetic fields at n_e = −0.65*10¹² cm⁻². d & e. R_xy as E is scanned at different temperatures at n_e = −0.65*10¹² cm⁻² and B = 30 mT. e & f. Critical fields E_B and E_T from a–d. g. Effective g-factor of the averaged orbital magnetic moment as a function of E extracted from e & f. h–n. Same measurements and analysis as a–g at n_e = −0.45*10¹² cm⁻².
