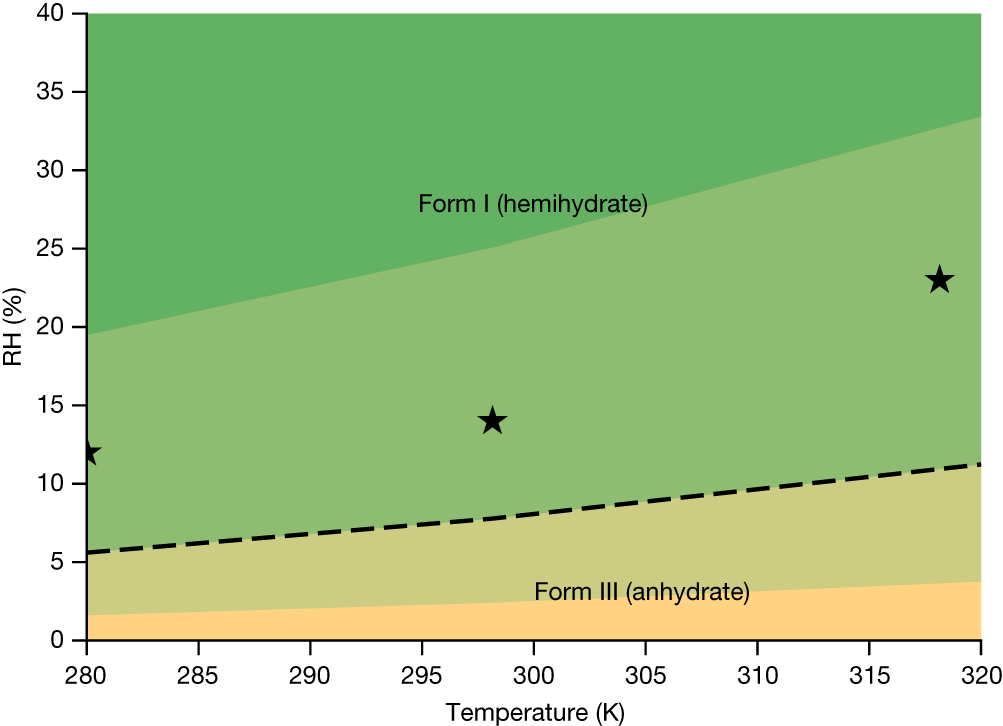

Fig. 6: Predicted phase diagram of upadacitinib.
From: Predicting crystal form stability under real-world conditions
The dashed line indicates the predicted phase boundary, with shading to indicate the 1σ confidence intervals. The experimentally measured phase-transition points are indicated by stars.
