Extended Data Fig. 9: Future changes in precipitation and the subtropical westerly jet in the summer under the SSP2-4.5 scenario.

From: Precipitation regime changes in High Mountain Asia driven by cleaner air

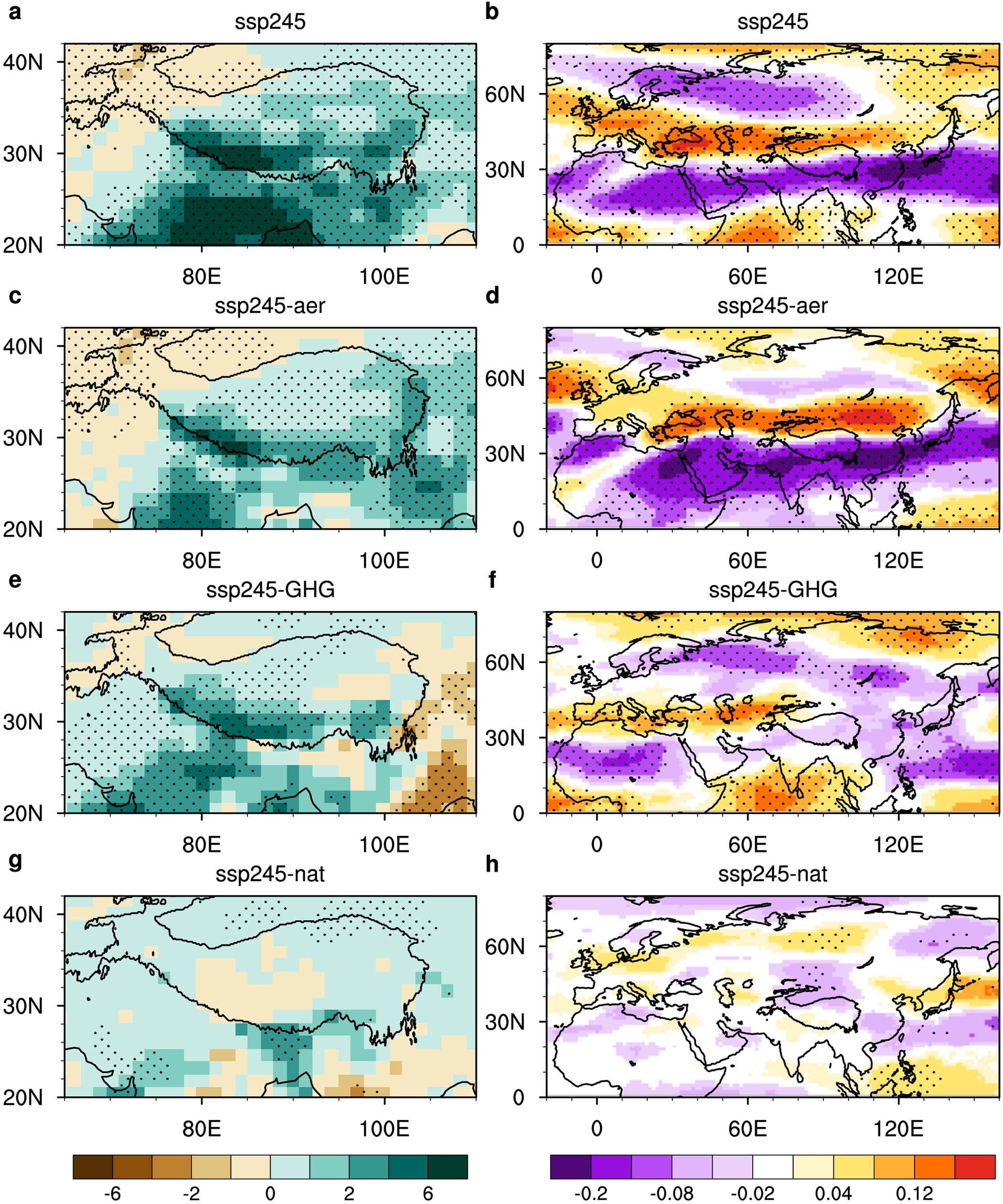

Extended Data Fig. 9: Future changes in precipitation and the subtropical westerly jet in the summer under the SSP2-4.5 scenario.The alternative text for this image may have been generated using AI.

Linear trends of precipitation (a, c, e, g; mm·month−1·decade−1) and 200 hPa zonal wind (b, d, f, h; m·s−1·decade−1) under the SSP2-4.5 (a, b), SSP2-4.5-aer (c, d), SSP2-4.5-GHG (e, f), and SSP2-4.5-nat (g, h) scenarios from 2021-2100 derived from the ensemble mean of MIROC6. The stippling indicates that the trend is significant at the 10% level according to the Mann-Kendall test. The boundaries of HMA are identified as an isoline of 2500 m according to Global Multi-resolution Terrain Elevation Data 201052.
