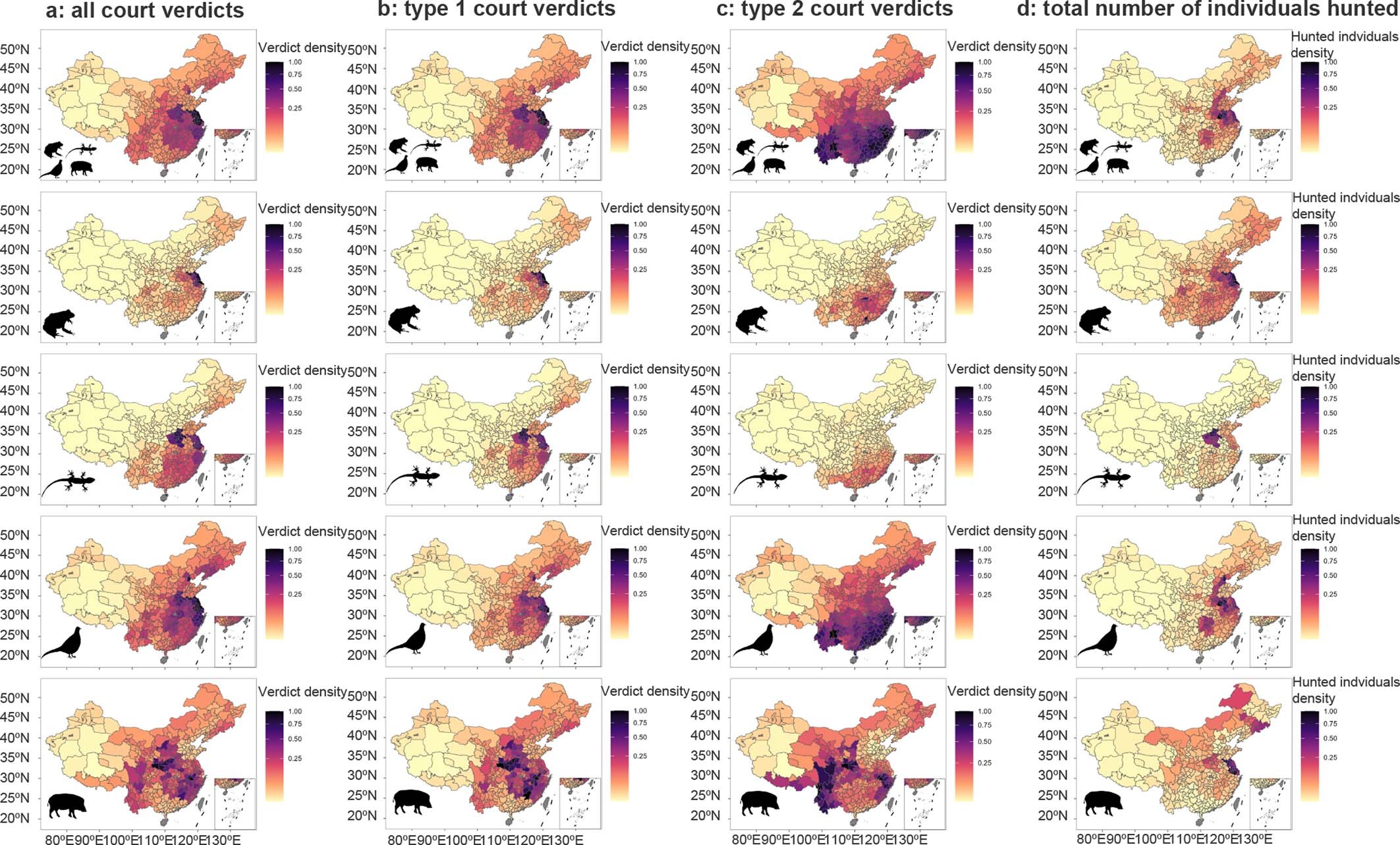

Extended Data Fig. 10: The predicted geographic patterns of the number of court verdicts and the number of animals illegally hunted per km2 in 336 Chinese prefectures.
From: Assessing the illegal hunting of native wildlife in China
Figures in columns a-c show the predicted number of court verdicts (scaled to 0-1 by the maximum values) per 1000 km2 based on the top models for all verdicts (a), type 1 verdicts (b), and type 2 verdicts (c), scaled to 0-1 by the maximum values (for models, see Supplementary Tables 7−9). Maps in column d show the predicted number of animals hunted per 1,000 km2, scaled to 0-1 by the maximum values and color scale is on log (for top models, see Supplementary Table 10). From top to bottom, rows show the four vertebrate groups combined, amphibians, reptiles, birds, and mammals.
