Extended Data Fig. 8: The contrasting geographic and host transmission patterns among HPAI H5 2.3.4.4b, 2.3.4.4x, 2.3.2.1, and 2.2 clades inferred from discrete phylogeography.
From: The episodic resurgence of highly pathogenic avian influenza H5 virus

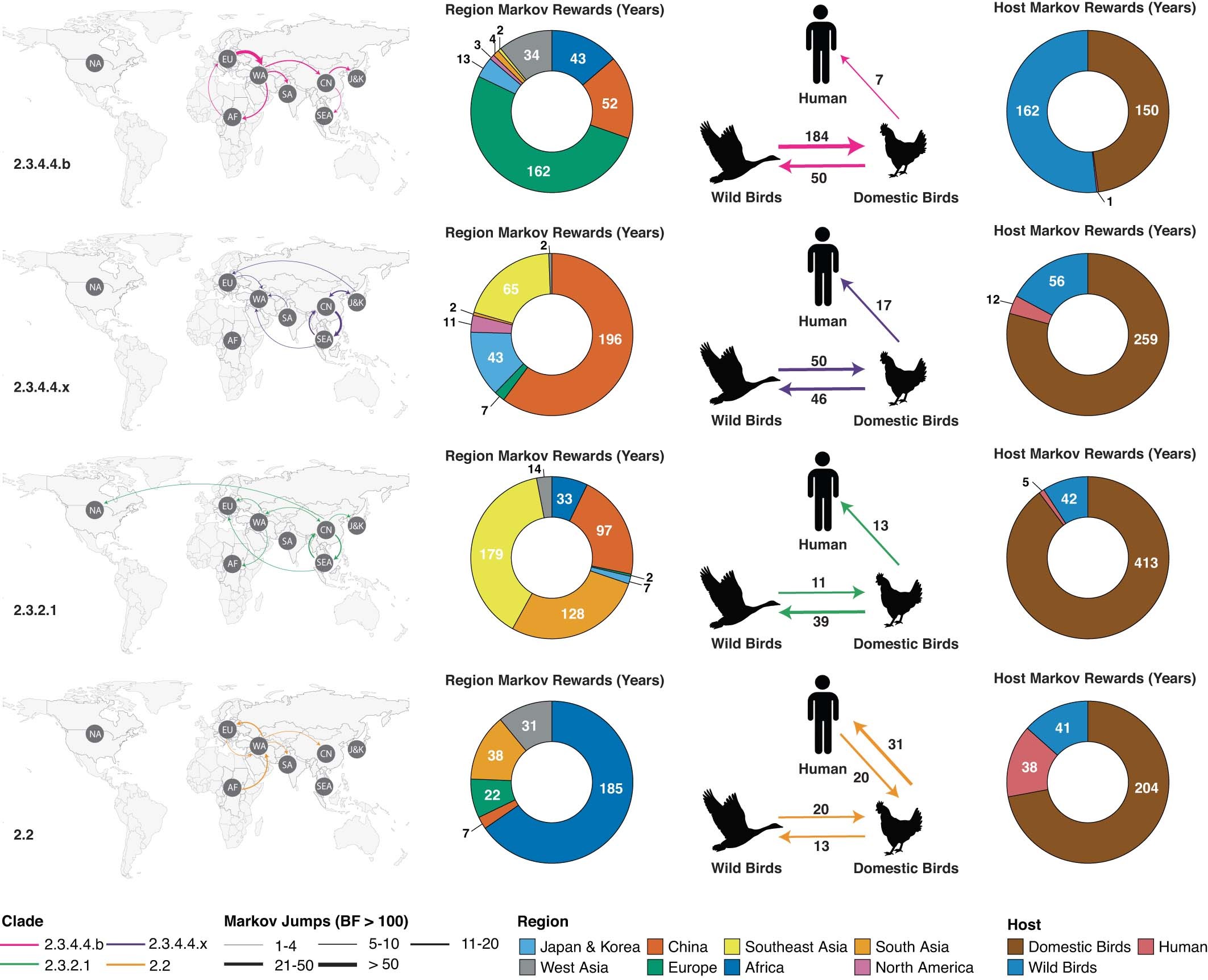

From left to right, the figures represent regional Markov jumps, regional Markov rewards, host Markov jumps, and host Markov rewards.
