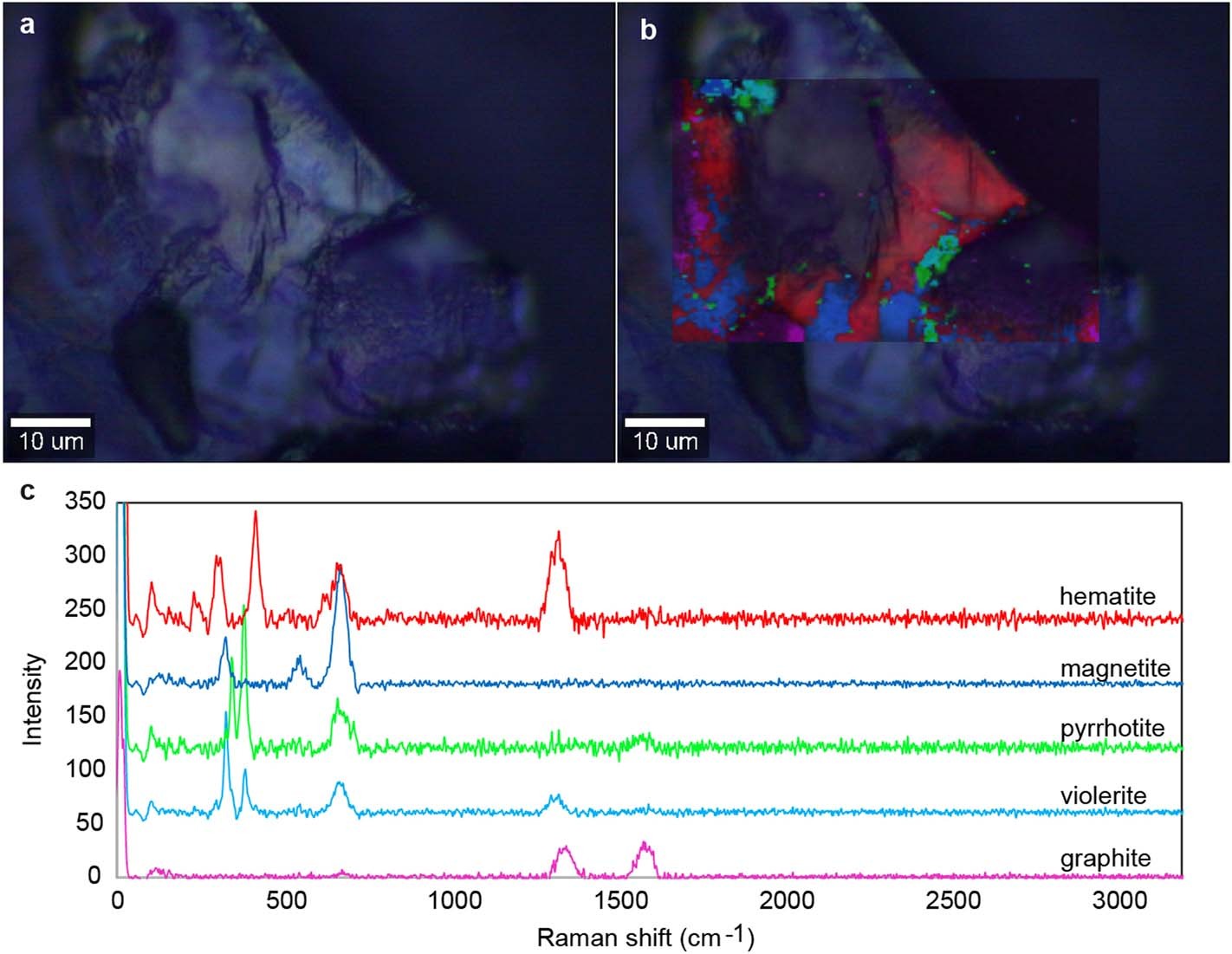

Extended Data Fig. 5: Raman images and spectra of J1 sulfide inclusion.
From: Sublithospheric diamond ages and the supercontinent cycle
a) Reflected light image of the inclusion. b) Reflected light image of inclusion with an overlay of different phases shown by confocal Raman imaging spectroscopy. c) Spectra of phases found in the inclusion, colour-coded to match the map shown in b.
