Extended Data Fig. 8: Neural responses for some pairs are similar in WT and unc-31-mutant animals.
From: Neural signal propagation atlas of Caenorhabditis elegans

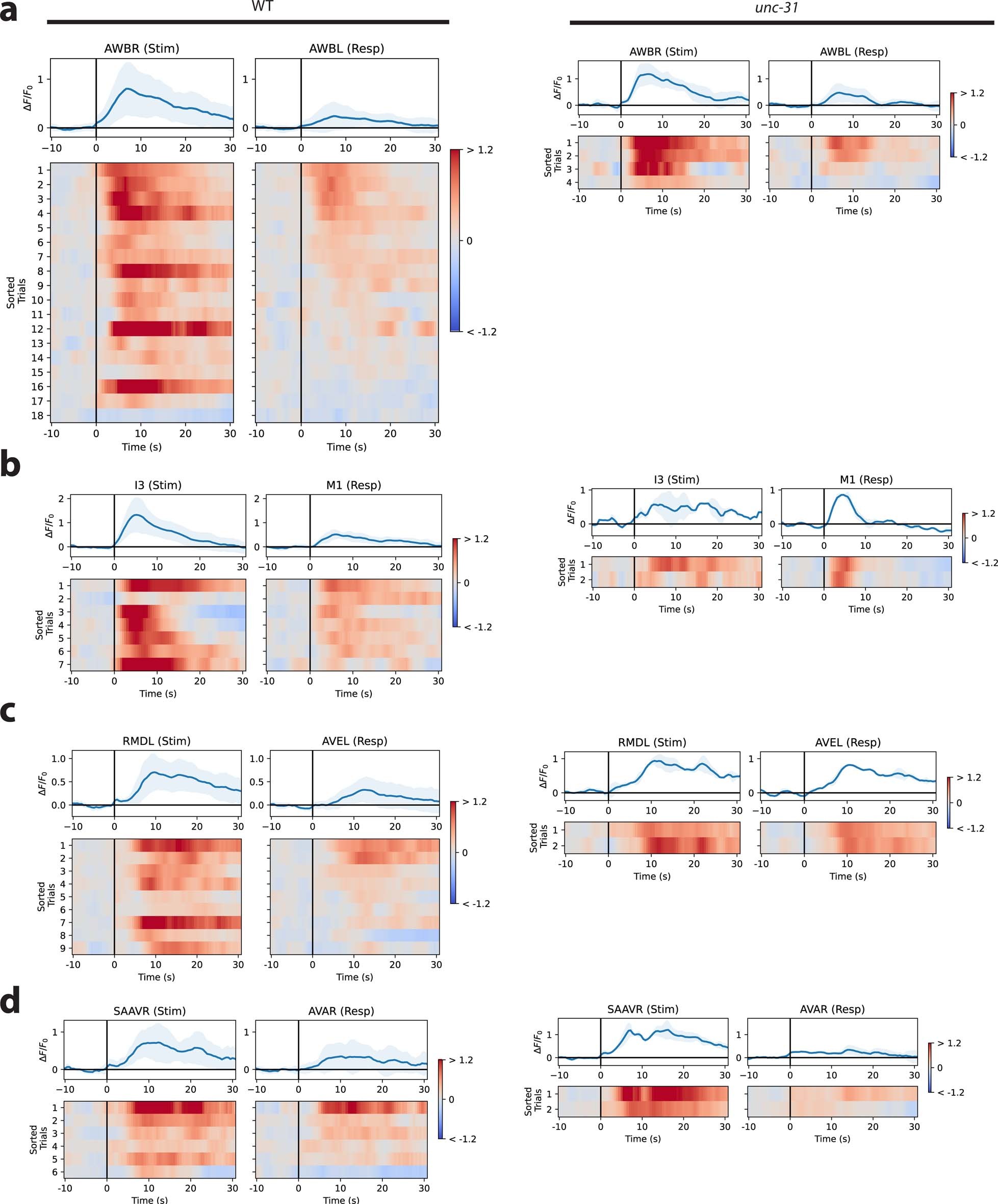

Paired stimulus and response traces of selected neuron pairs with monosynaptic gap junctions (a–c) or monosynaptic chemical synapses (d) are shown in a WT background (left) and in a unc-31-mutant background (right). Top: mean (blue) and s.d. (shading) across trials and animals.
