Extended Data Fig. 2: Gold-standard FSC curves and nomenclature comparison with other studies.
From: Structure of the native myosin filament in the relaxed cardiac sarcomere

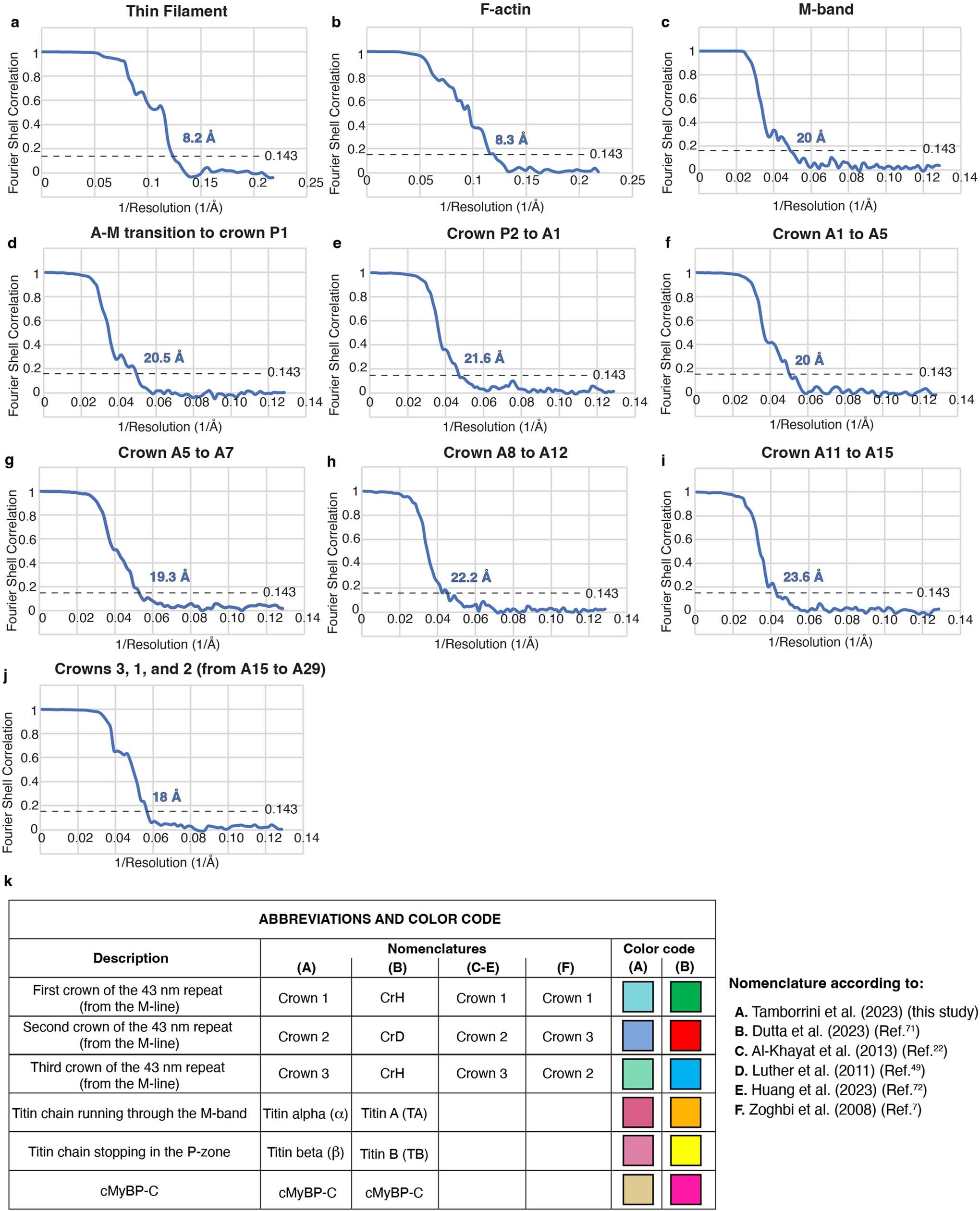

a,b, Gold-standard FSC curves of cardiac native thin filament (a), and F-actin, after masking out tropomyosin (b). c-j, Gold-standard FSC curves of the different segments of the relaxed thick filament: M-band (c), A-M transition to crown P1 (d), from crown P2 to A1 (e), from crown A1 to A5 (f), from crown A5 to A7 (g), from crown A8 to A12 (h), from crown A11 to A15 (i), and the combined segments from crown A15 to A29 (j). k, Abbreviations and color codes for the structural elements of the thick filament. This table is meant to facilitate the comparisons between nomenclature of this study with other published structural studies. Additionally, we also provide a color code comparison between this study and Dutta et al. (2023)71. The full CMYK palette for this study can be found in the Methods.
