Extended Data Fig. 8: Schematic representations of J- and C-shaped protofilaments.
From: Disease-specific tau filaments assemble via polymorphic intermediates

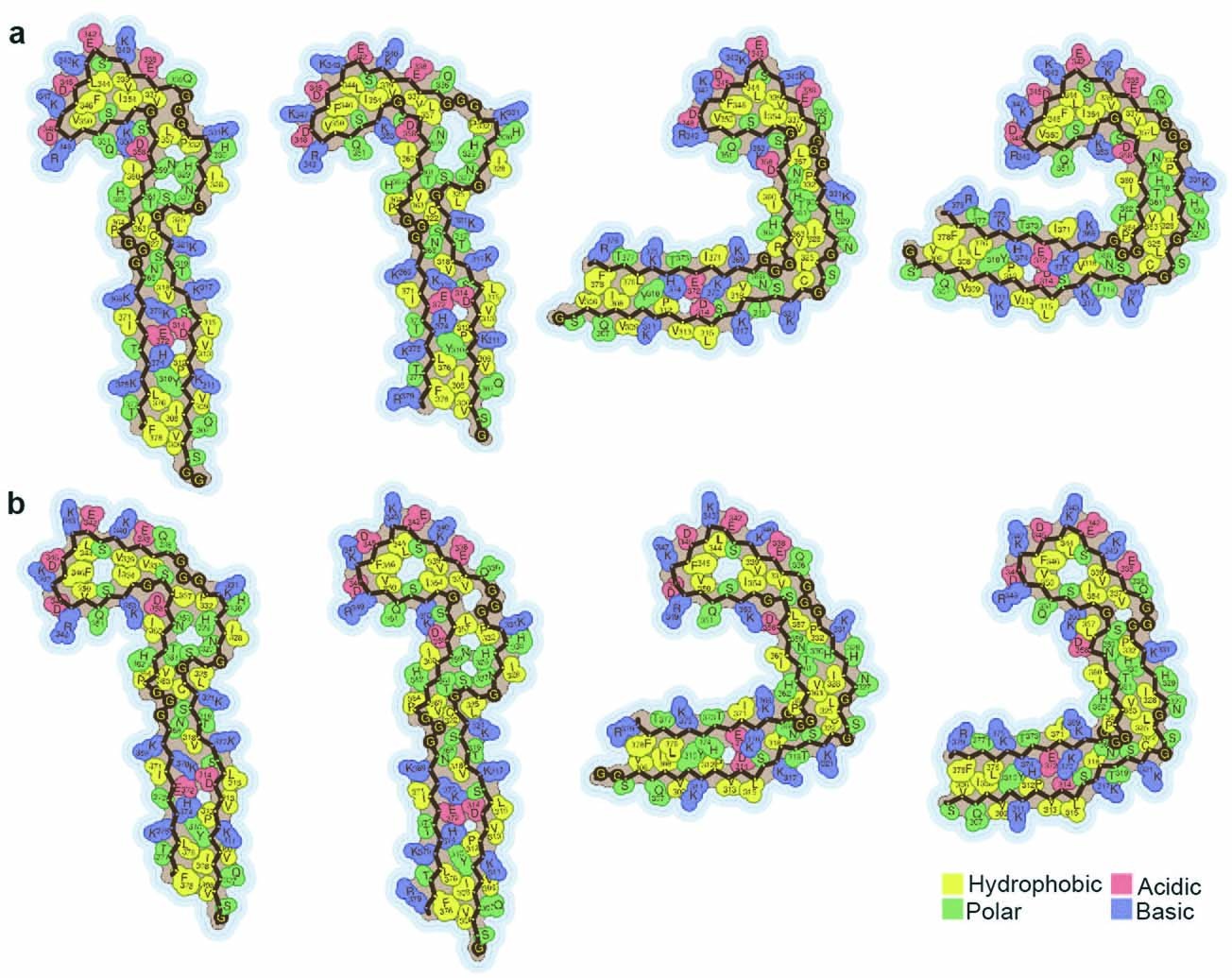

a. Schematic representation as defined in the Amyloid Illustrator80, of the residue packing of J- and C-shaped protofilaments from the PHF reactions, as shown in Fig. 5, illustrates the presence of voids near the 332PGGG335 motif in J-shaped protofilaments from the PHF reaction. b. As in a, but for protofilaments from the CTE reactions.
