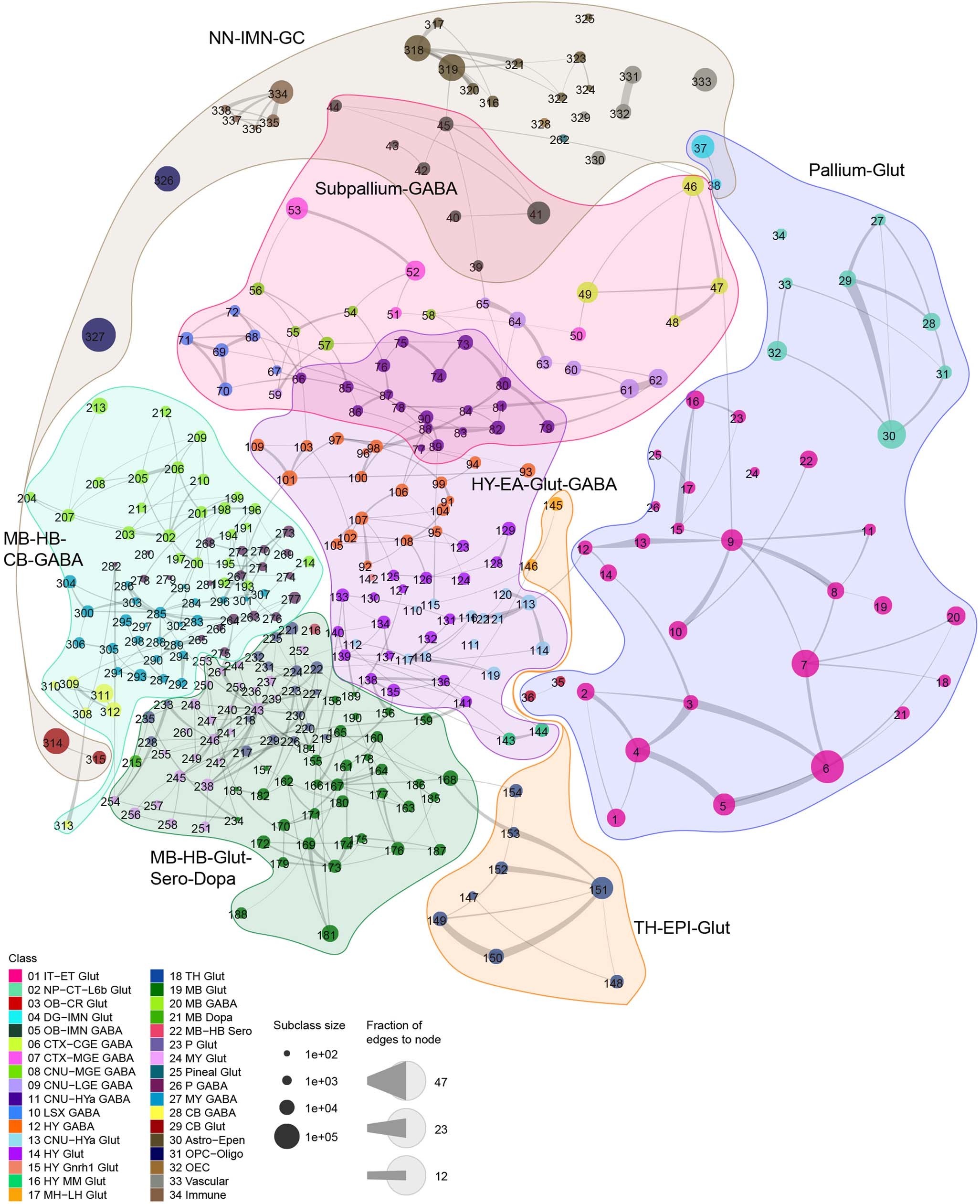

Extended Data Fig. 6: Constellation plot of the global relatedness between subclasses.
From: A high-resolution transcriptomic and spatial atlas of cell types in the whole mouse brain
Each subclass is represented by a disk, labeled by the subclass ID and positioned at the subclass centroid in UMAP coordinates shown in Fig. 1c. The size of the disk corresponds to the number of cells within each subclass, and the edge weights correspond to the fraction of shared neighbors (see Methods) between subclasses. Each subclass is colored by the class it belongs to. Curved outlines drawn around subclasses show the major neighborhoods.
