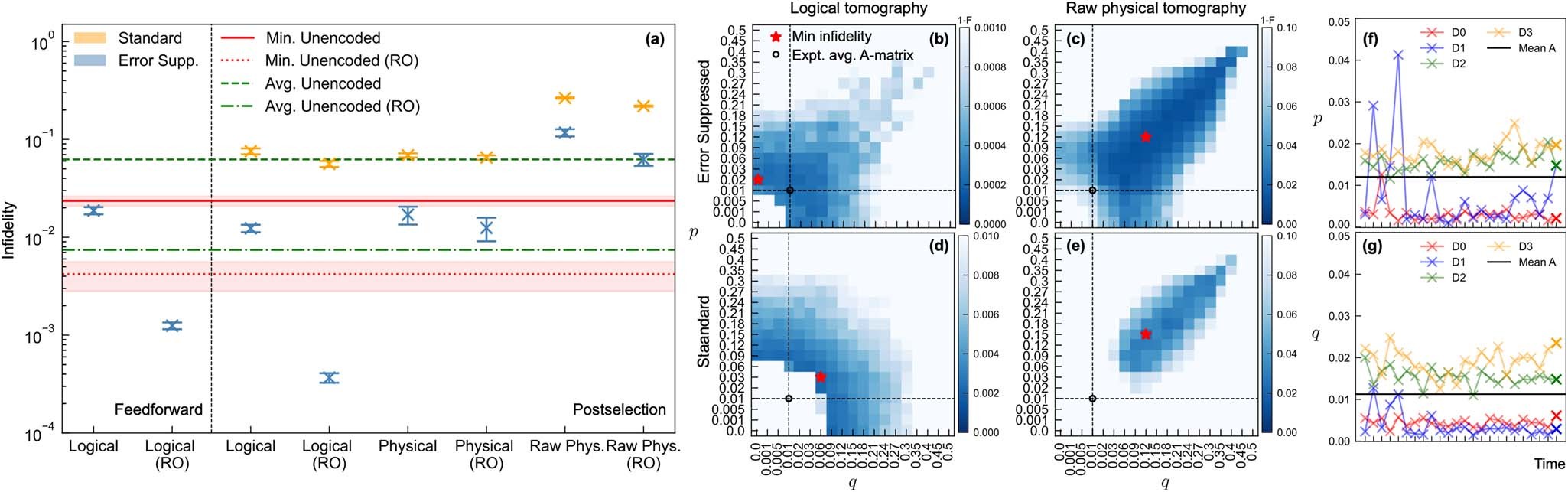

Extended Data Fig. 9: Combining readout-error mitigation with state tomography methods.

(a) State infidelity for the standard (orange) vs. error-suppressed (blue) schemes using different tomographic methods; error-bars represent 1σ std. dev. from bootstrapping. On the x-axis, a state is reconstructed with either logical tomography (Logical) or physical tomography after logical projection (Physical); tomography assumes either ideal projectors, as in the main text, or noisy POVMs representing uncorrelated, local readout errors (RO) on terminal data qubit measurements. Raw physical tomography (Raw Phys.) refers to the state on four physical qubits prior to logical projection. Red dotted (green dot-dashed) lines show lowest (average) state infidelities of the two-qubit unencoded magic state prepared with RO mitigation. With RO mitigation, logical tomography outperforms the min. unencoded state supporting conclusions in the main text. (b)-(e) Heatmap of state infidelity vs. avg. measurement error, p ≡ P(1∣0), q ≡ P(0∣1). Experimental tomography data is fit to noisy POVMs using a parameterized A-matrix, A ≔ [[1 − p, q], [p, 1 − q]], where p, q are constant for all qubits and time. Experimental readout calibrations data are averaged over time and qubits, and correspond to a single state infidelity in (b)-(e) (black dots). These state infidelities (black dots) do not coincide with local minima (red stars) or even high-fidelity regions. (f)-(g) Readout calibration measurements of p, q vs. time for all four data qubits over several days; average rates (black solid) are used in (b)-(e) for state fidelities marked by black dots.
