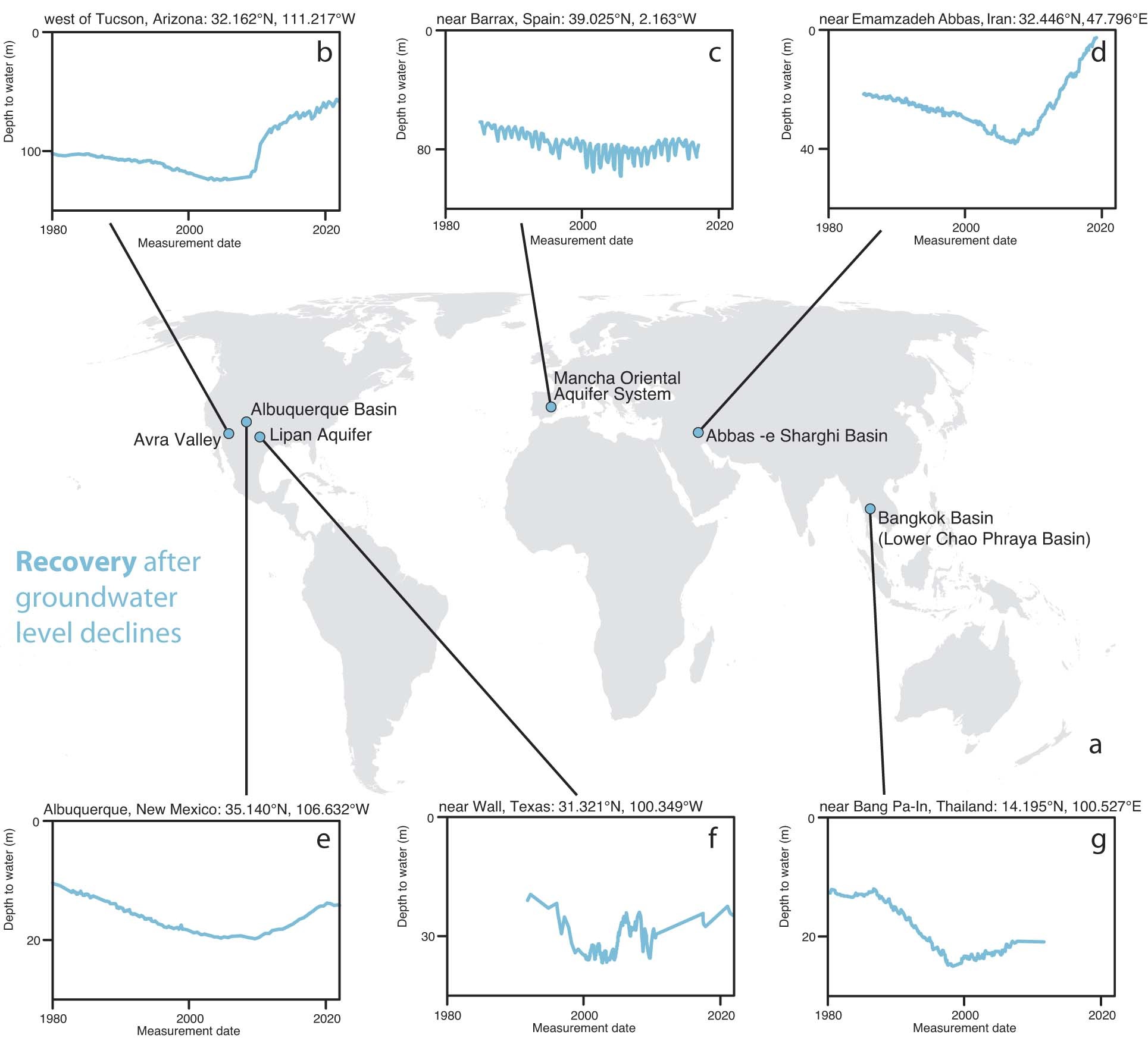

Extended Data Fig. 3: Illustrative examples of individual monitoring wells that record cases for which groundwater levels declined during late twentieth century but rose during the early twenty-first century (that is, cases of groundwater level recovery).
From: Rapid groundwater decline and some cases of recovery in aquifers globally
a, Global map depicting the locations of the six monitoring wells (that is, each point represents one monitoring well). The aquifer system that each monitoring well lies in is labelled next to each point. b–g, Measured groundwater-level variations over time for individual monitoring wells. Each panel presents groundwater-level data for a single monitoring well.
