Extended Data Fig. 4: Translocation of O6* to O6.
From: Oxygen-evolving photosystem II structures during S1–S2–S3 transitions

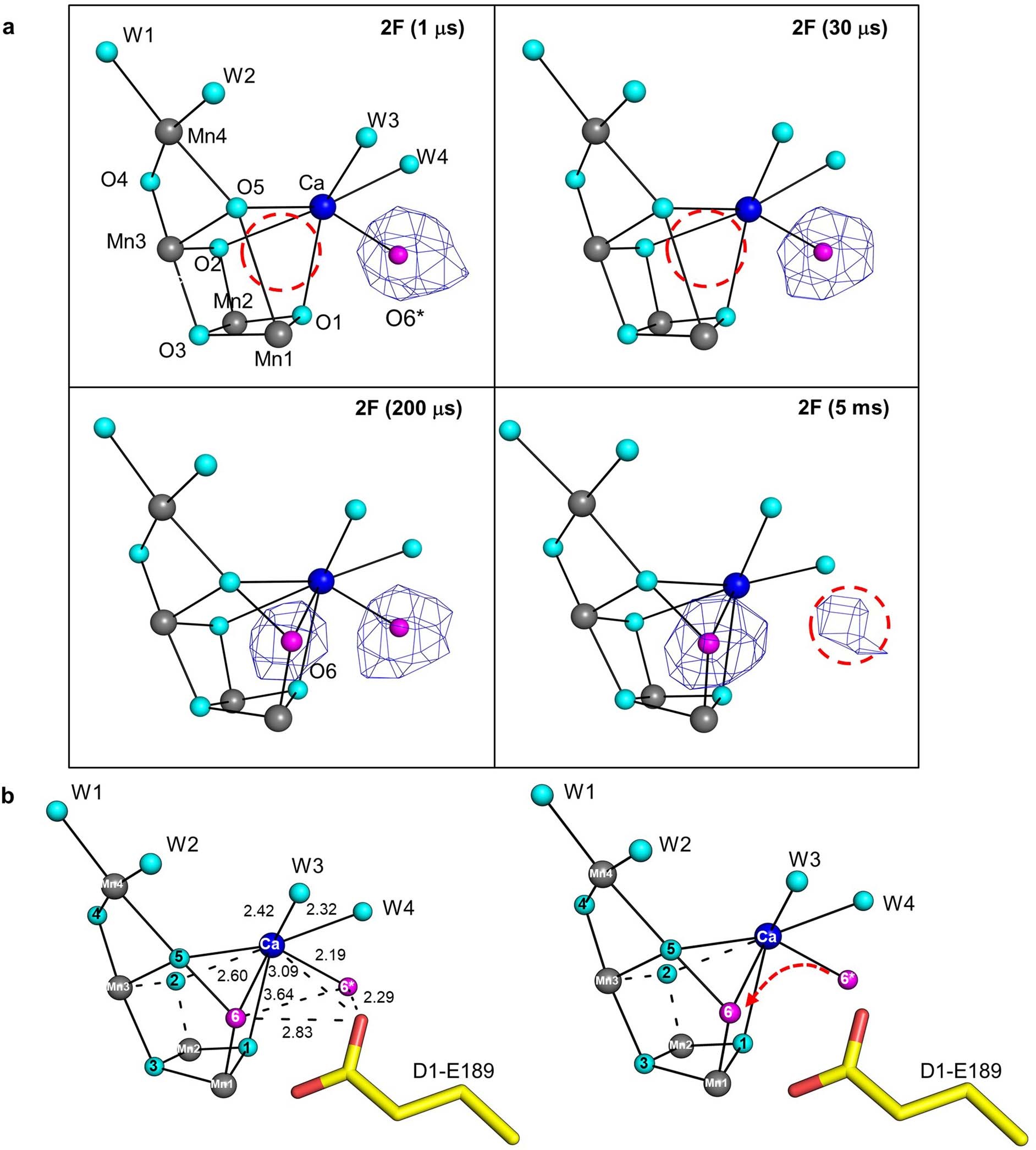

a, Polder omit maps contoured at +3.0σ (blue mesh) of O6* and O6 are superposed with OEC models after 2F. The red dashed circles indicate positions where O6 or O6* is either absent or weak during that specific time point. b, Translocation pathway of O6*. Numbers represent the inter-atomic distances in angstrom (Å). The red line represents the potential translocation pathway for O6*.
