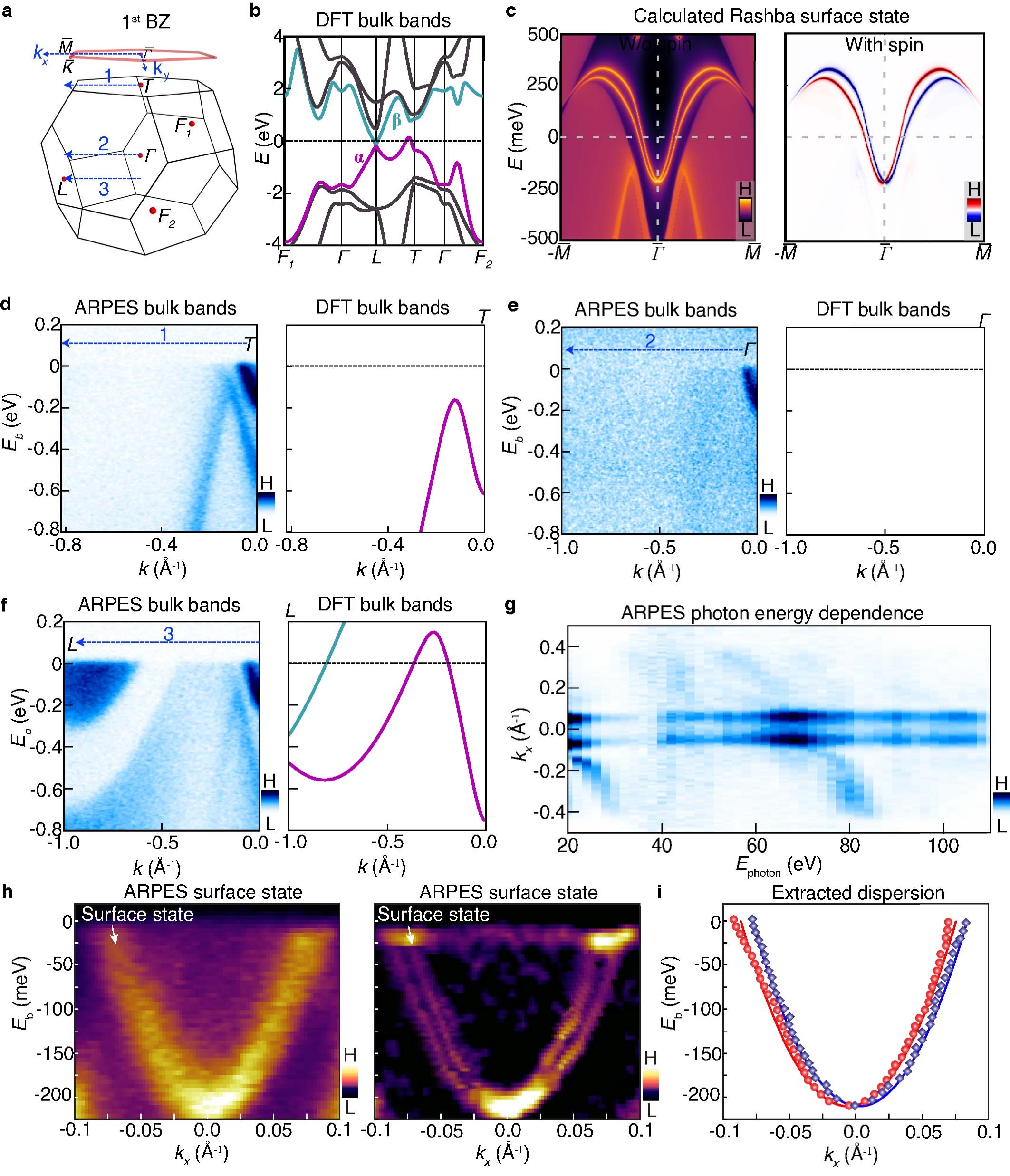

Extended Data Fig. 1: First-principles calculations and angle-resolved photoemission spectroscopy determination of the electronic band structures.
