Fig. 2: Performance of ModelAngelo for proteins.
From: Automated model building and protein identification in cryo-EM maps

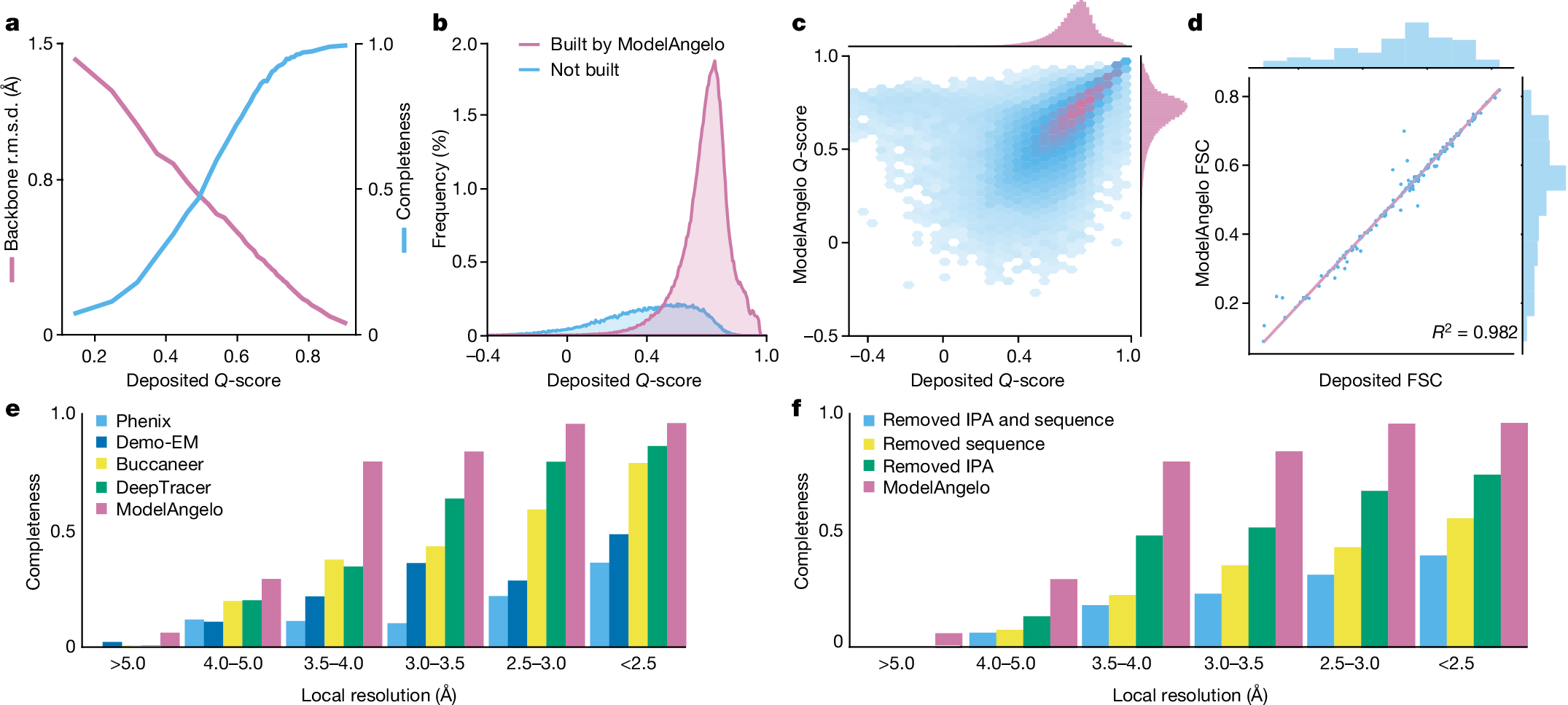

a, The backbone r.m.s.d. and model completeness plotted as a function of the target model Q-scores. b, Histograms of the Q-scores of residues in the deposited models, comparing those built by ModelAngelo with those not built. c, Q-score comparison between ModelAngelo-predicted models and the deposited models. d, Model-to-map Fourier shell correlation (FSC), as calculated by Servalcat37 after refining both models and using only residues present in both ModelAngelo and deposited models. e, Model completeness for various automated model-building software for different local-resolution ranges in the maps. f, Model completeness for ModelAngelo and versions of ModelAngelo in which its sequence and/or IPA modules were ablated. For a–d, the data relate to the test set of 177 structures; for e and f, the data relate to the subset of 27 structures.
