Extended Data Fig. 2: Schematic drawing of the two-node quantum network.

From: Entanglement of nanophotonic quantum memory nodes in a telecom network

Extended Data Fig. 2

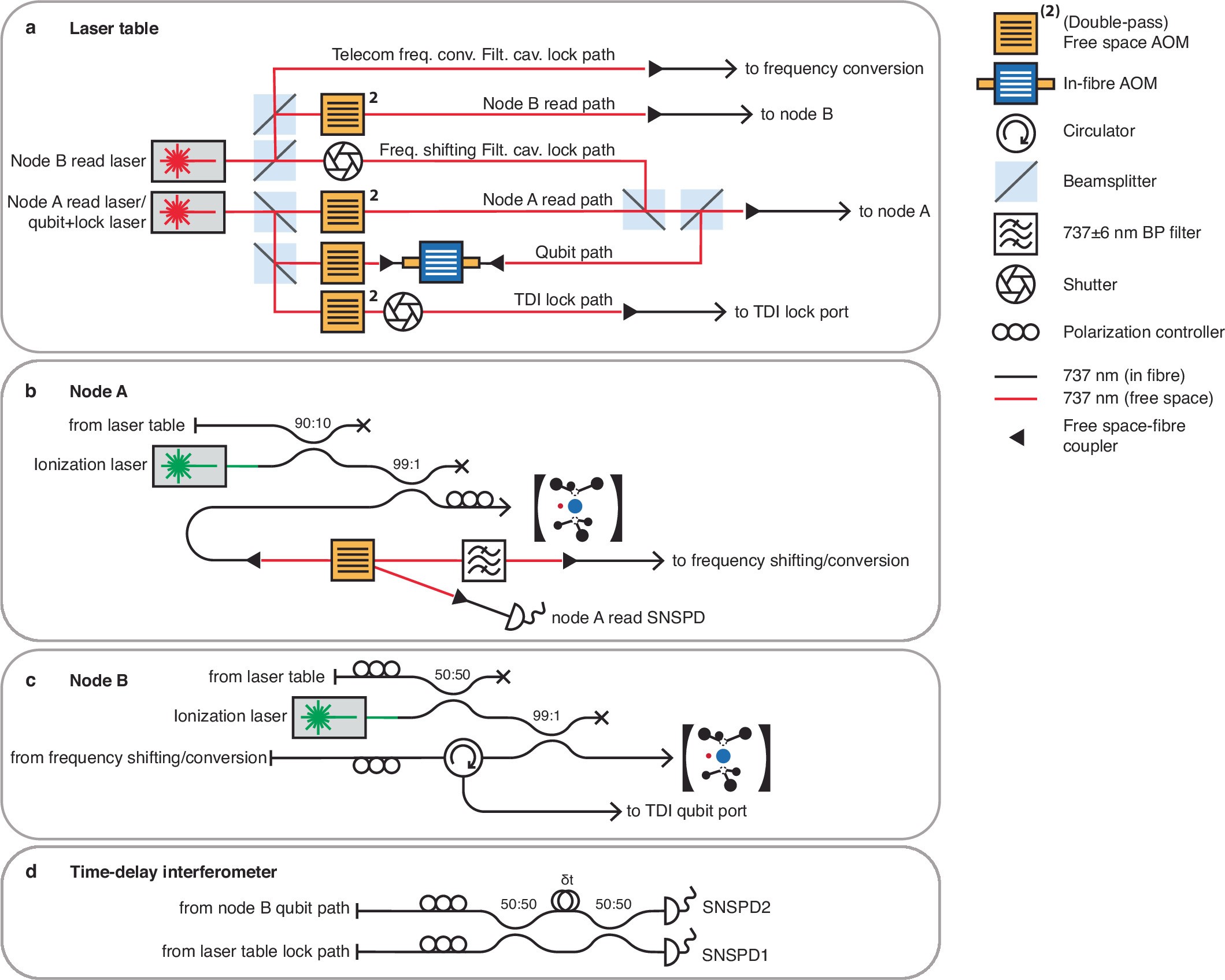

a, Laser table. Here, all the optical fields are prepared for node A and B readout, filter cavity, and time-delay interferometer (TDI) locking, and the photonic qubits are shaped by an in-fibre AOM. b,c, Node A and B. The nodes contain the photonic qubit travel path and a readout path for individual spin readout, as well as an insertion port for a green laser stabilizing the SiVs’ charge state. d, Time-delay interferometer. The TDI allows measurement of the photonic qubits in superposition bases.
