Extended Data Fig. 6: Additional examples of the evolution of LTs from PRE to reMAZE.

From: Retuning of hippocampal representations during sleep

Extended Data Fig. 6

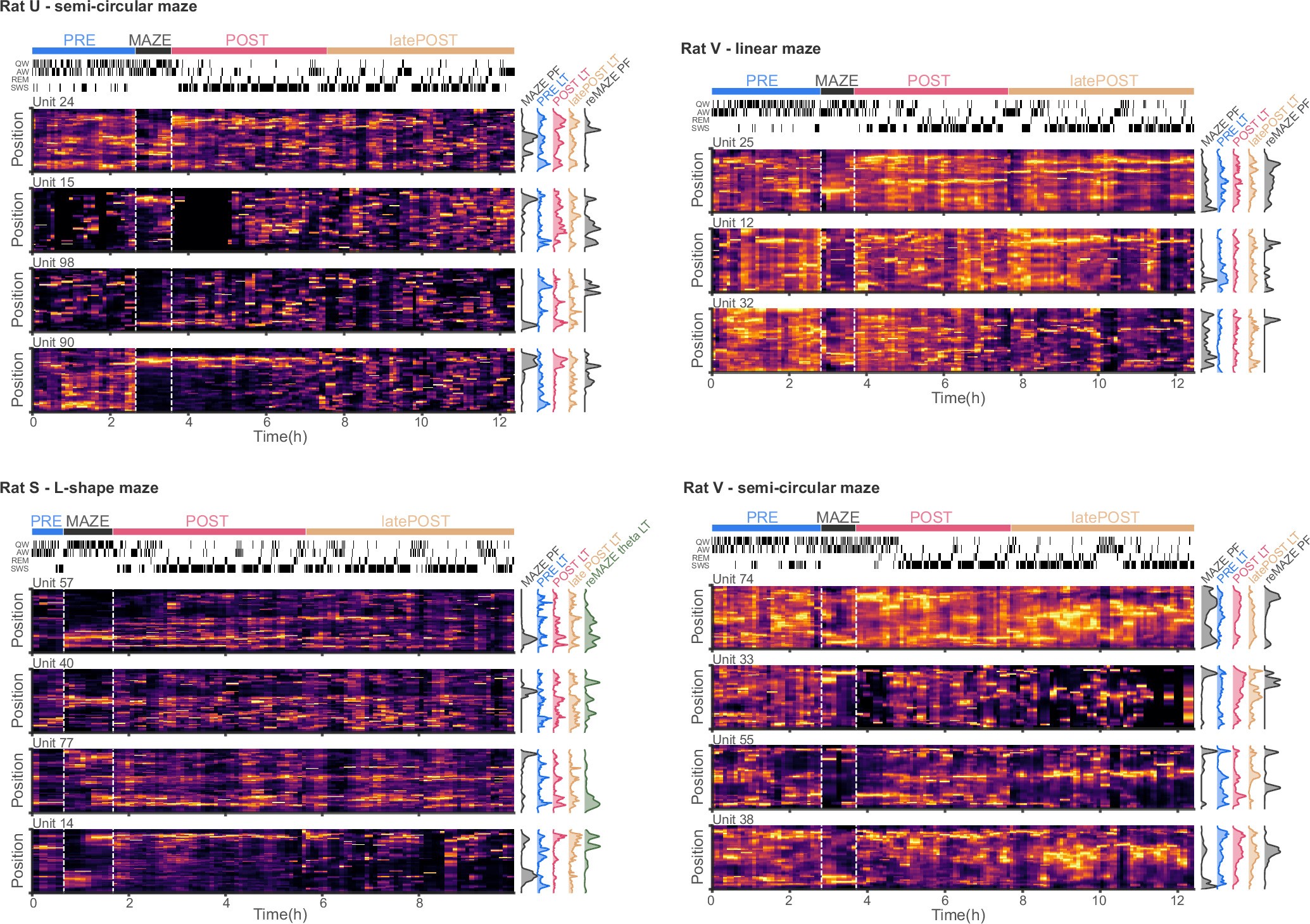

Similar to Fig. 5h, heat maps of ripple LTs in sliding 15 min windows from PRE through MAZE, POST, and latePOST for sample units from 4 different sessions (hypnogram on top left indicate the brain state, quiet wake (QW), active wake (AW), rapid eye movement (REM) sleep, and slow-wave sleep (SWS) at each timepoint). MAZE and reMAZE place fields and LTs during PRE, POST, and latePOST are plotted on the right of each panel, except for Rat S for which we plot reMAZE θ-oscillation LTs (rather than reMAZE PFs) because video tracking was lost during reMAZE for this session.
