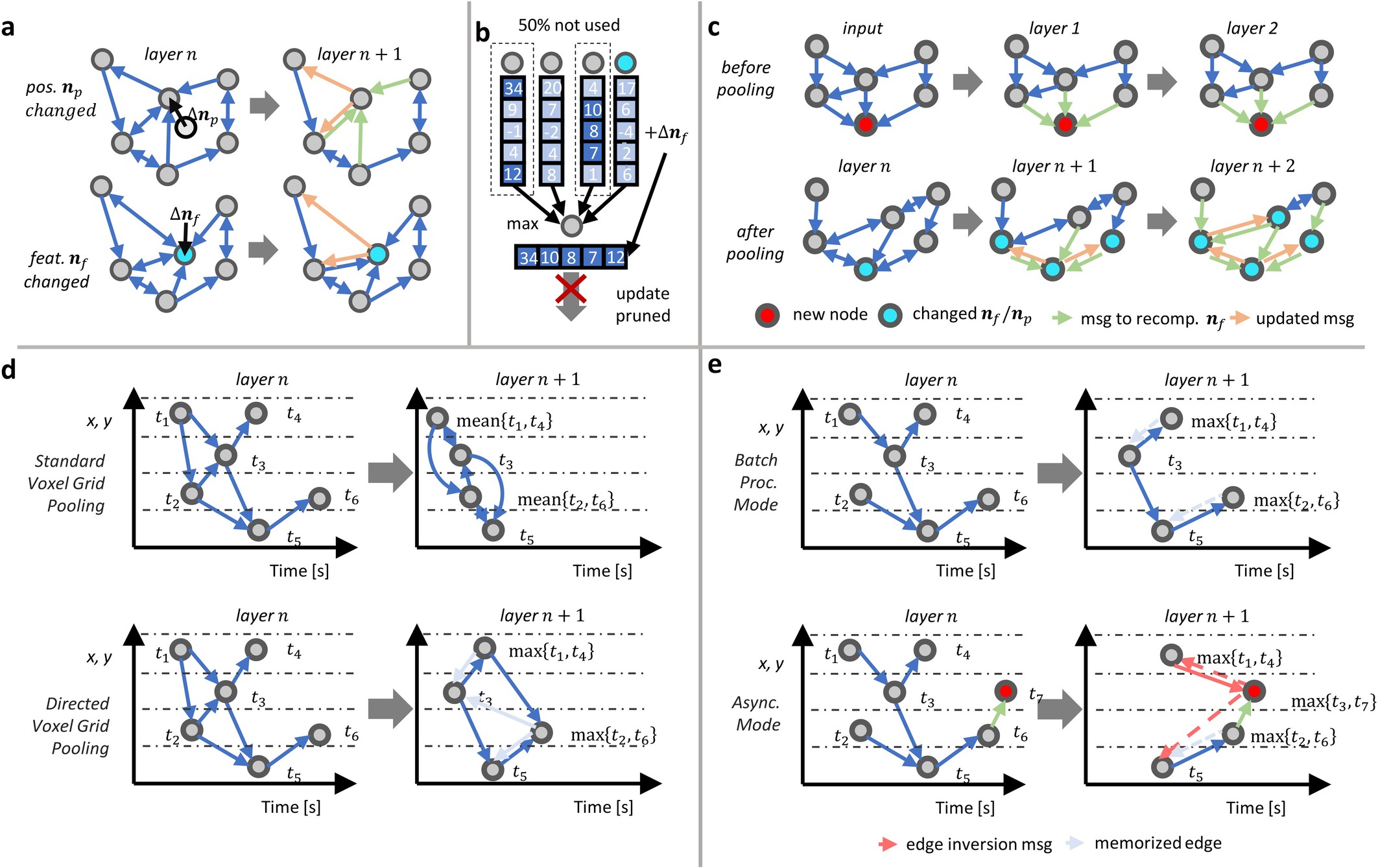

Extended Data Fig. 2: Asynchronous graph operations for a single event.

(a) Update rule for convolution layers. Node position or feature changes result in update messages from the changed node (orange arrows). Node position changes result in recompute messages to the changed node (green messages). (b) Update pruning in pooling layers. If a changed input nodes is in the currently unused (grayed out) set, it does not have a feature higher than the current output and it does not change the output node sufficiently to change rounding, the update is pruned. (c) Update propagation applied to multiple layers. Before pooling, edges are directed, so the number of computed messages remains constant with network depth. After pooling, bidirectional edges appear, leading to a growth in the number of computed messages in lower layers. (d) To reduce this growth, directed voxel grid pooling is introduced. Different to standard pooling, directed pooling max-pools over the time dimension, and filters edges for which the source node has a higher timestamp than the input node (grayed out), resulting in a directed event graph even after pooling. (e) Asynchronous updating of directed pooling layer. Sometimes edges are inverted when an older node is promoted to a newer node through max-pooling of the time dimension. In this case, the edges need to be reversed, leading to a new message (pink) being sent to and from the updated node.
