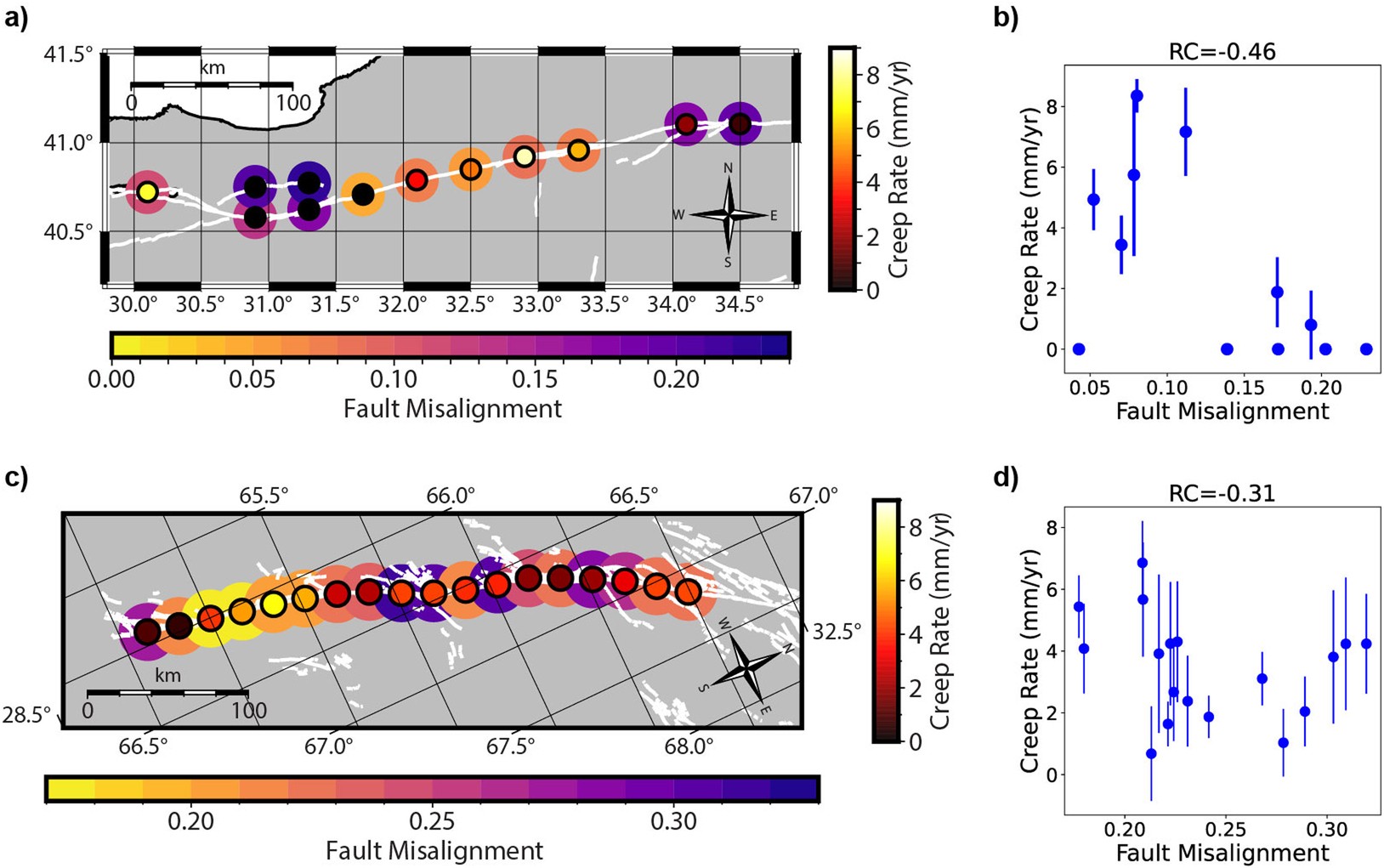

Extended Data Fig. 2: Fault misalignment and creep outside California.
From: Fault-network geometry influences earthquake frictional behaviour
a, Fault misalignment and fault creep rates along the North Anatolian Fault. Inner circles indicate surface creep rates51,52,53 and outer circles indicate measured fault misalignments. Surface fault traces are coloured in white54. b, Scatter plot of fault misalignment and surface creep rates along the North Anatolian Fault. Spearman’s rank correlation (RC) coefficient between the two is indicated in the subplot title. c, Fault misalignment and fault creep rates along the Chaman Fault. Inner circles indicate surface creep rates55 and outer circles indicate measured fault misalignments. Surface fault traces are coloured in white58. d, Scatter plot of fault misalignment and surface creep rates along the Chaman Fault. Spearman’s RC coefficient between the two is indicated in the subplot title.
