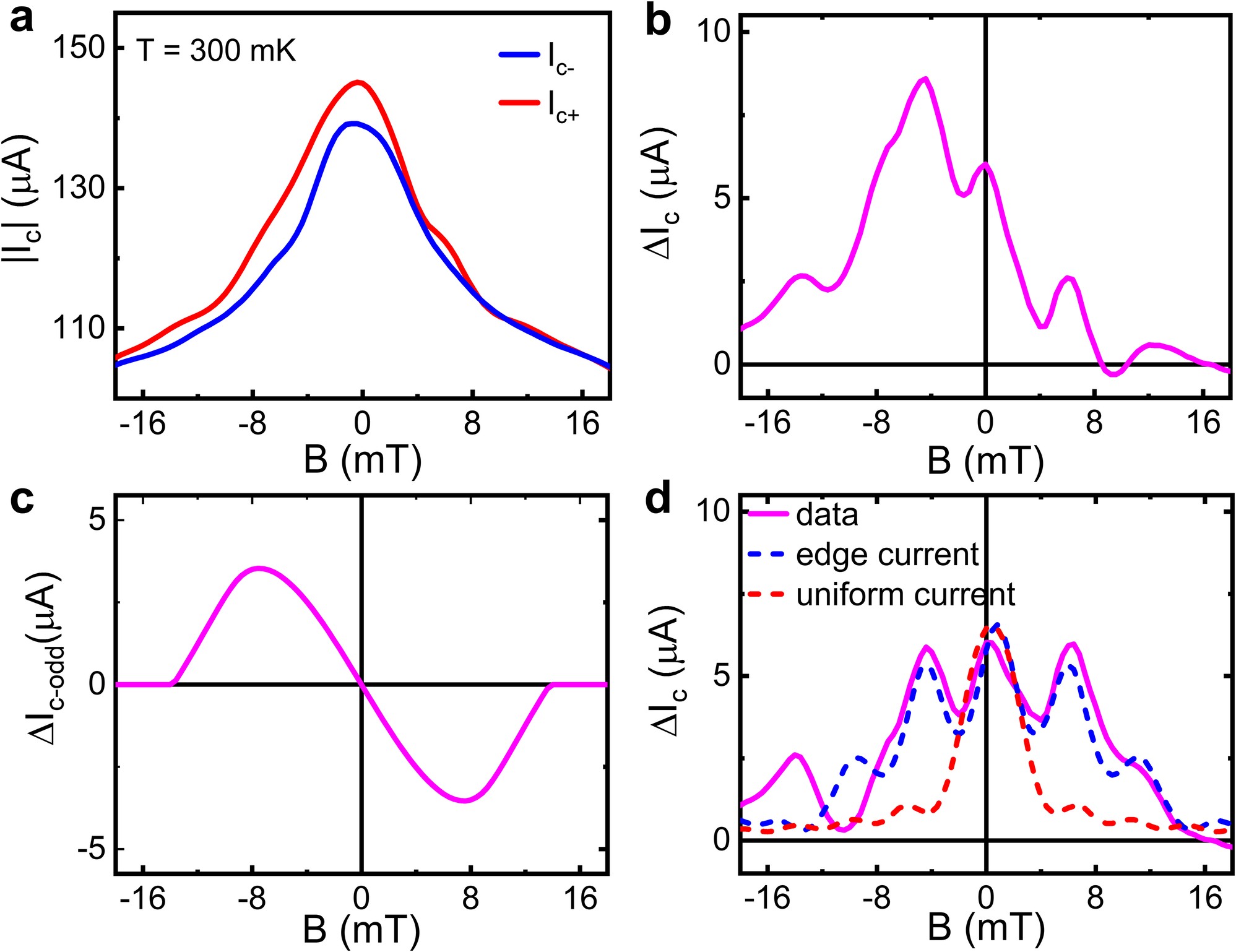

Extended Data Fig. 9: Further analysis of field-free SDE.
From: Unconventional superconductivity in chiral molecule–TaS2 hybrid superlattices
a, ΔIc versus magnetic field in chiral molecule intercalated TaS2. b, ΔIc versus field in chiral molecule intercalated TaS2, which can be resolved with a combination of odd (c) and even (d) function components. c, Phenomenological calculated field-mediated critical current differences ΔIc-odd as a function of magnetic field. d, Field-free diode component ΔIc-even as a function of magnetic field, which shows oscillation patterns (magenta). We note that there is an apparent oscillation with several peaks in the ΔIc-even versus B scan, with a Fraunhofer-like pattern. The overall amplitude of ΔIc-even decays more slowly with magnetic field than a typical Fraunhofer pattern (in which the peak amplitude scales with 1/B), but fits well with a non-uniform supercurrent distribution favouring an edge-state transport54,55,56. The dashed lines are fitting of a Fraunhofer pattern with uniform current distribution (red) or with edge current distribution (blue).
