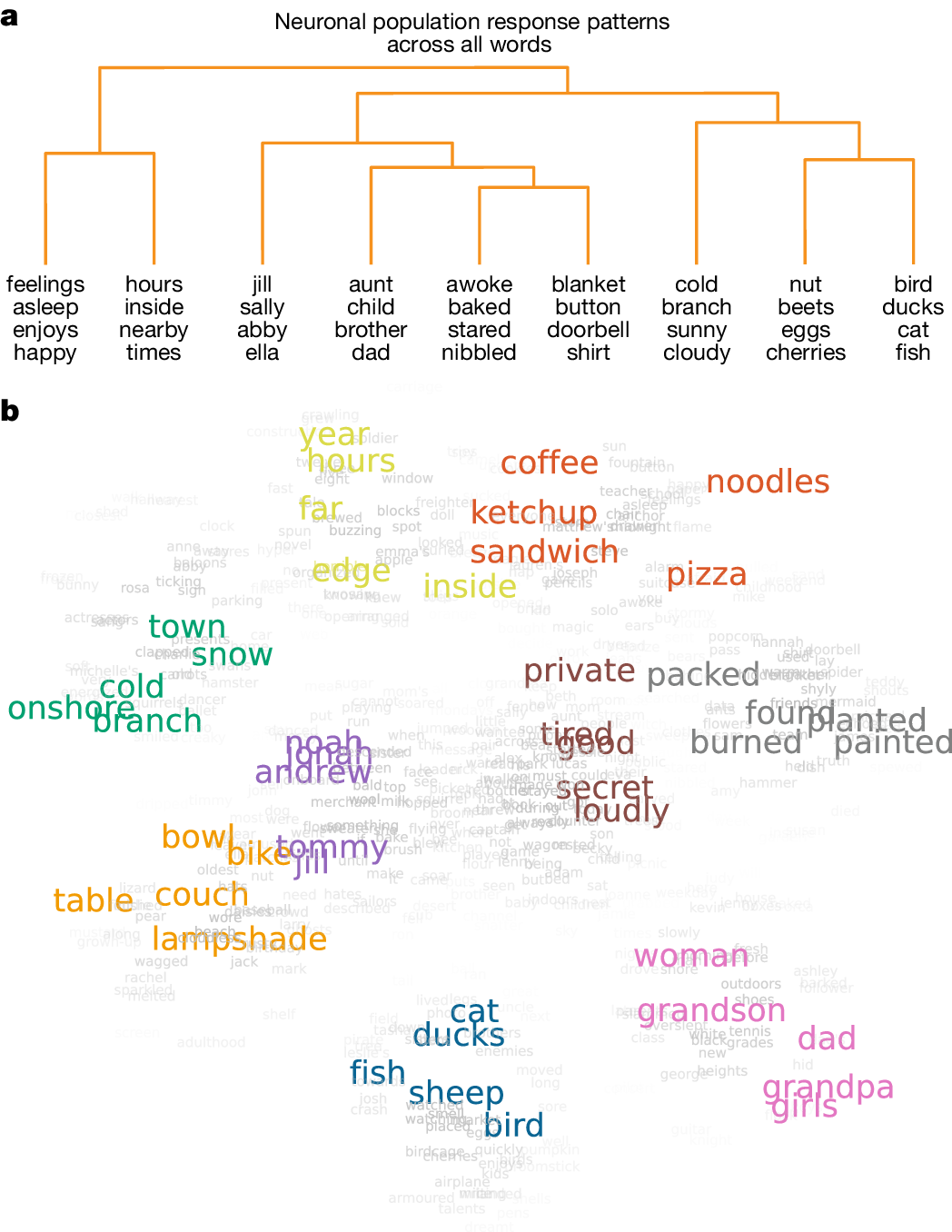

Fig. 5: Organization of semantic representations within the cell population.
From: Semantic encoding during language comprehension at single-cell resolution
a, An agglomerative hierarchical clustering procedure was carried out on all word projections in PC space obtained from the neuronal population data. The dendrogram shows representative word projections, with the branches truncated to allow for visualization. Words that were connected by fewer links in the hierarchy have a smaller cophenetic distance. b, A t-stochastic neighbour embedding procedure was used to visualize all word projections (in grey) by collapsing them onto a common two-dimensional manifold. For comparison, representative words are further colour-coded on the basis of their original semantic domain assignments in Fig. 1c.
