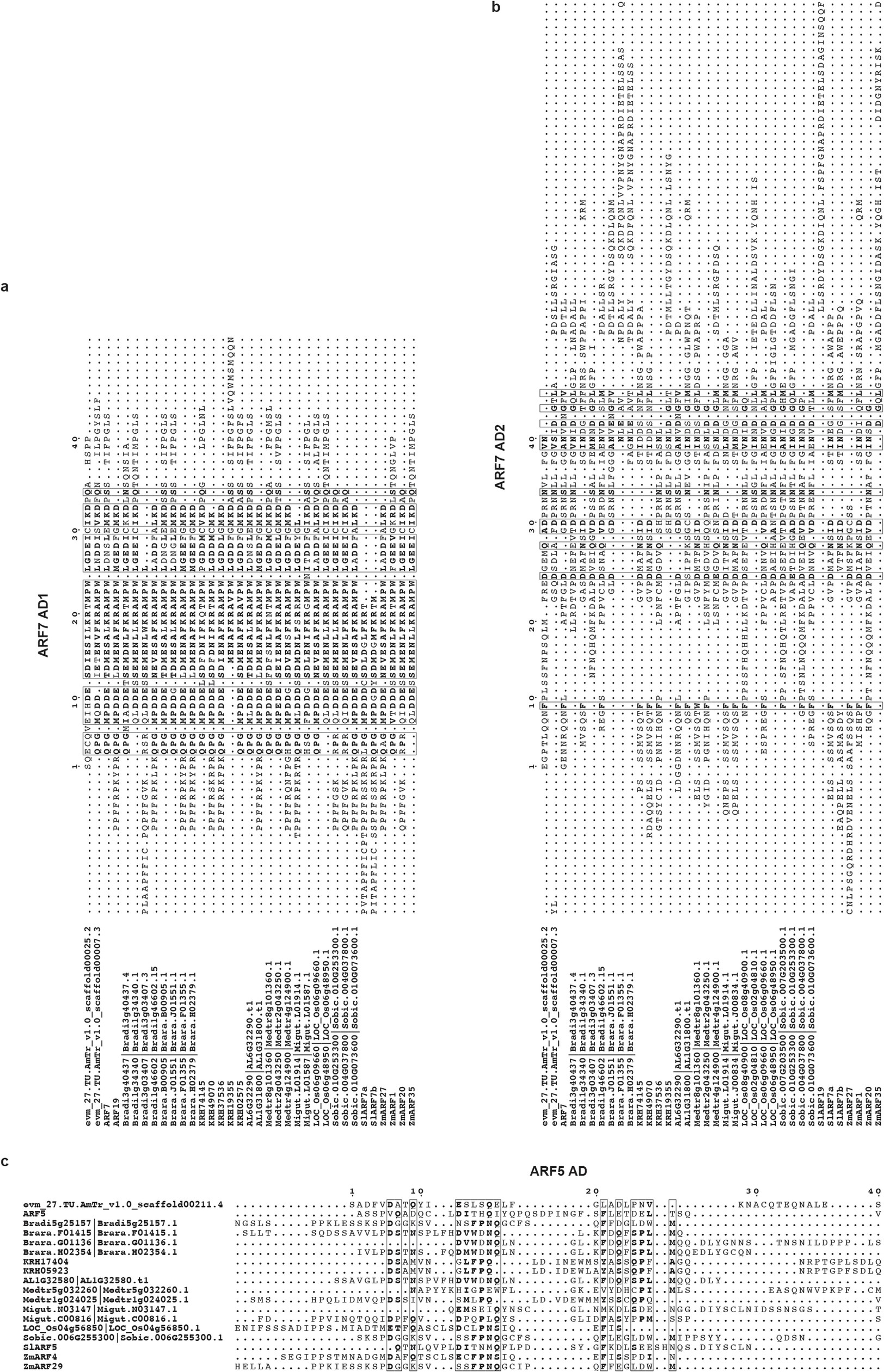

Extended Data Fig. 7: ARF7 and ARF5 subclade AD alignments.
From: Identification of plant transcriptional activation domains
a–c,The highest-scoring fragment from each tested ARF within the defined ARF7 and ARF5 AD regions (a, ARF7AD1; b, ARF7AD2; c, ARF5 AD) (orange bars in Extended Data Fig. 5b,d) were used to generate alignments with MAFFT. Alignments were visualized with the ESPript 3.0 webserver. Boxes indicate regions in which 50% of amino acid residues share sequence similarity based on biochemical properties. Bolded residues are the amino acids with shared properties within the region. Black boxes represent sequence conservation.
