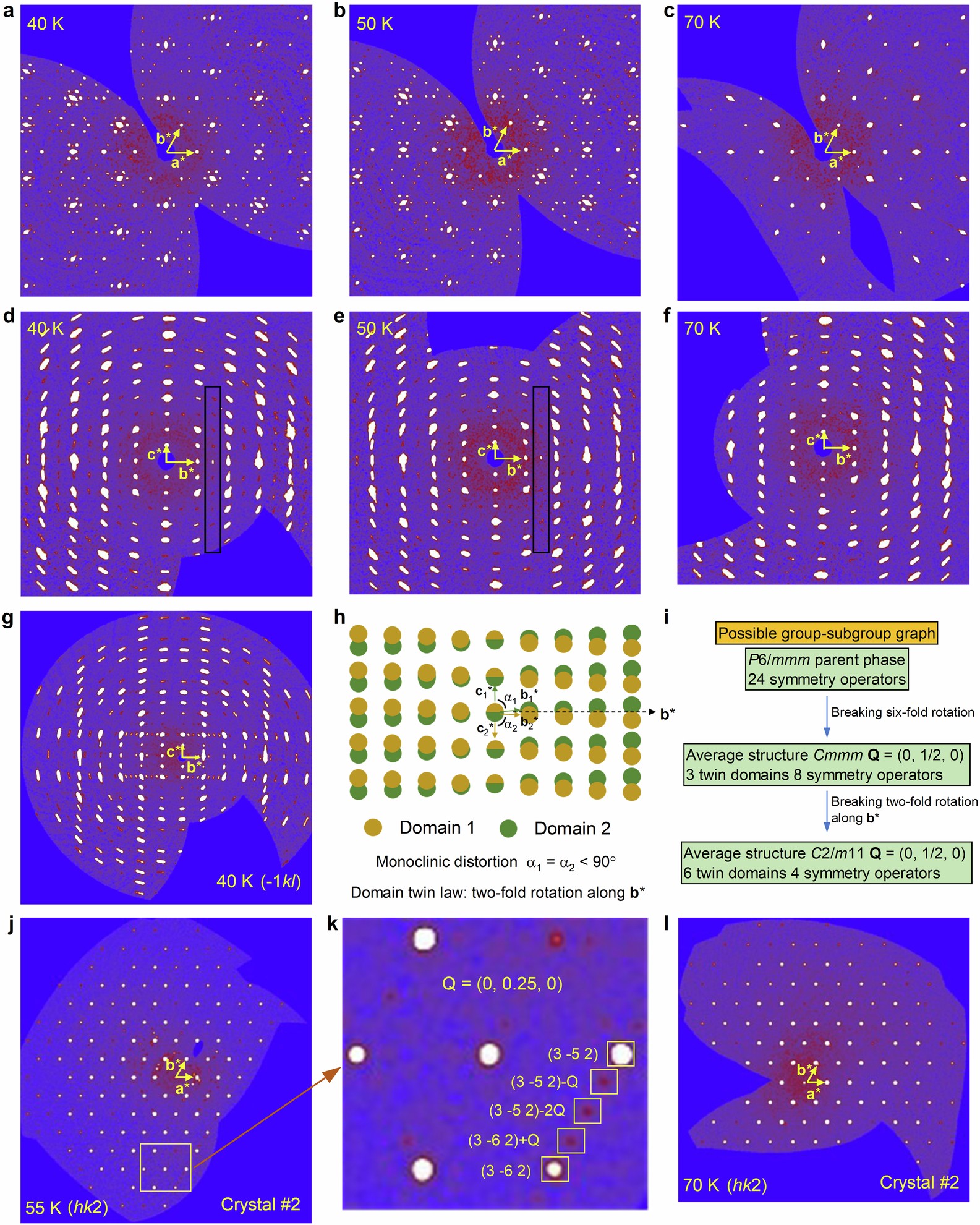

Extended Data Fig. 3: Information on the structural transition and modulations in CsCr3Sb5.
From: Superconductivity under pressure in a chromium-based kagome metal
a-c, Reconstructed (hk0) planes of reflections at 40, 50, and 70 K, respectively, with unit vectors a* and b* marked. d-f, Reconstructed (0kl) planes of reflections at 40, 50, and 70 K, respectively. g, Reconstructed (\(\bar{1}\)kl) plane of reflections up to the highest resolution achieved by the data set. h, Illustration of monoclinic distortion in the reciprocal space to interpret the observed diffraction pattern in g. i, Possible group-subgroup graph with the number of twin domains based on the qualitative analysis on satellite and main reflections for the structural modulation at 40 K. j,l, (hk2) planes of XRD reflections at 55 and 70 K, respectively, for another piece of the crystal. k, A close-up of the marked area in j.
