Extended Data Fig. 6: Gene expression of ‘Ca. M. washburnensis’ strain LCB3 during methanogenic growth on hydrogen and methanol.

From: Methyl-reducing methanogenesis by a thermophilic culture of Korarchaeia

Extended Data Fig. 6

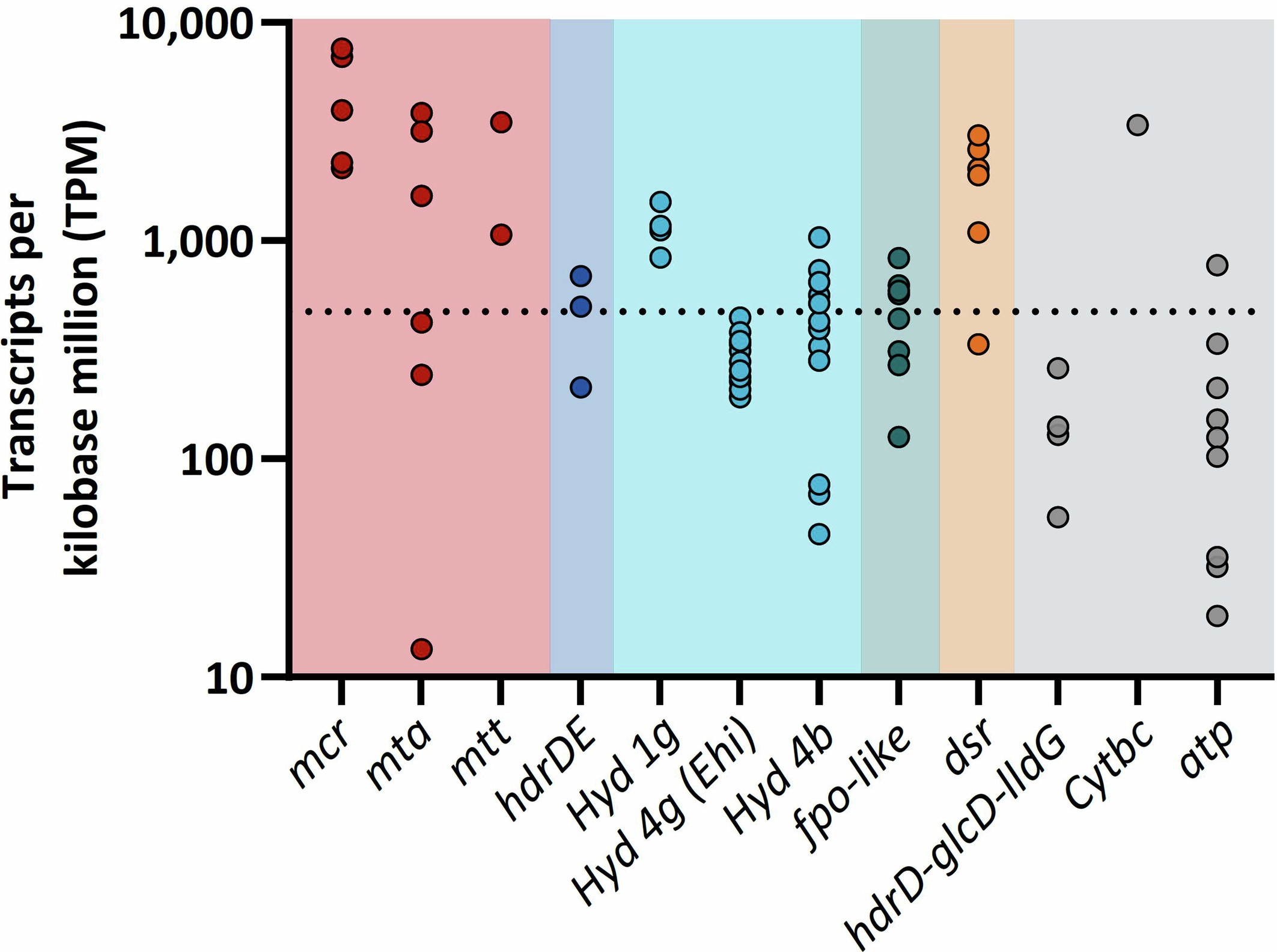

Dashed line represents the average transcripts per kilobase million (TPM) of all genes (n = 1 experiment). Each dot represents the expression of a subunit in a multi-subunit enzyme complex. For abbreviations see Fig. 4. See SI Tables 10, 11 for details on gene annotation and gene expression.
