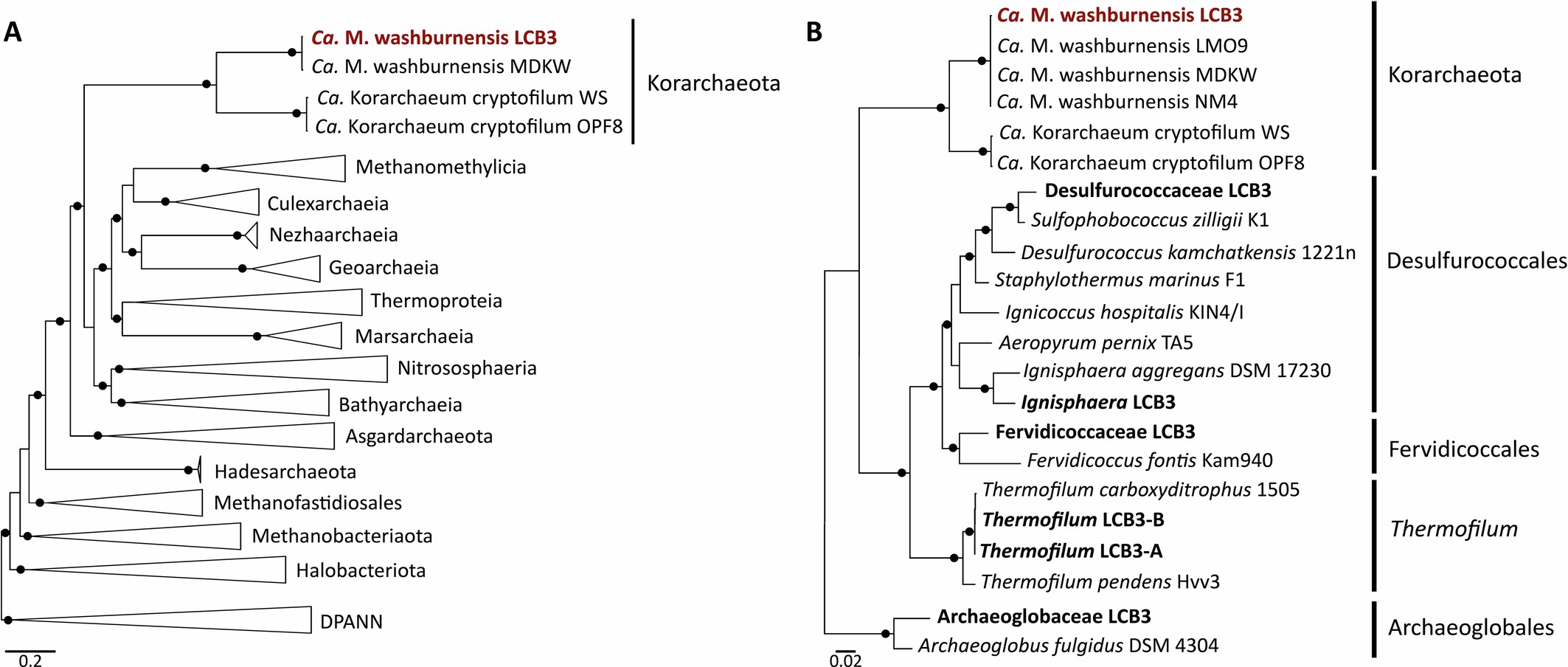

Extended Data Fig. 3: Phylogenetic affiliation of ‘Ca. M. washburnensis’ strain LCB3.
From: Methyl-reducing methanogenesis by a thermophilic culture of Korarchaeia
A. Maximum likelihood phylogenomic tree of archaea based on 33 single copy marker genes. The tree was constructed with IQtree and the best-fit model LG+F+R10, from the concatenated alignment of conserved arCOGs. The ‘Ca. M. washburnensis’ strain LCB3 genome is highlighted in red. Circles indicate ultrafast bootstrap values >95. B. Maximum likelihood phylogenetic tree of 16S rRNA genes from culture LCB3. The tree was constructed with fasttree including the 16S rRNA gene from the LCB3 genome (red), 16S rRNA genes in MAGs from culture LCB3 and reference sequences. Circles indicate bootstrap support values >95.
