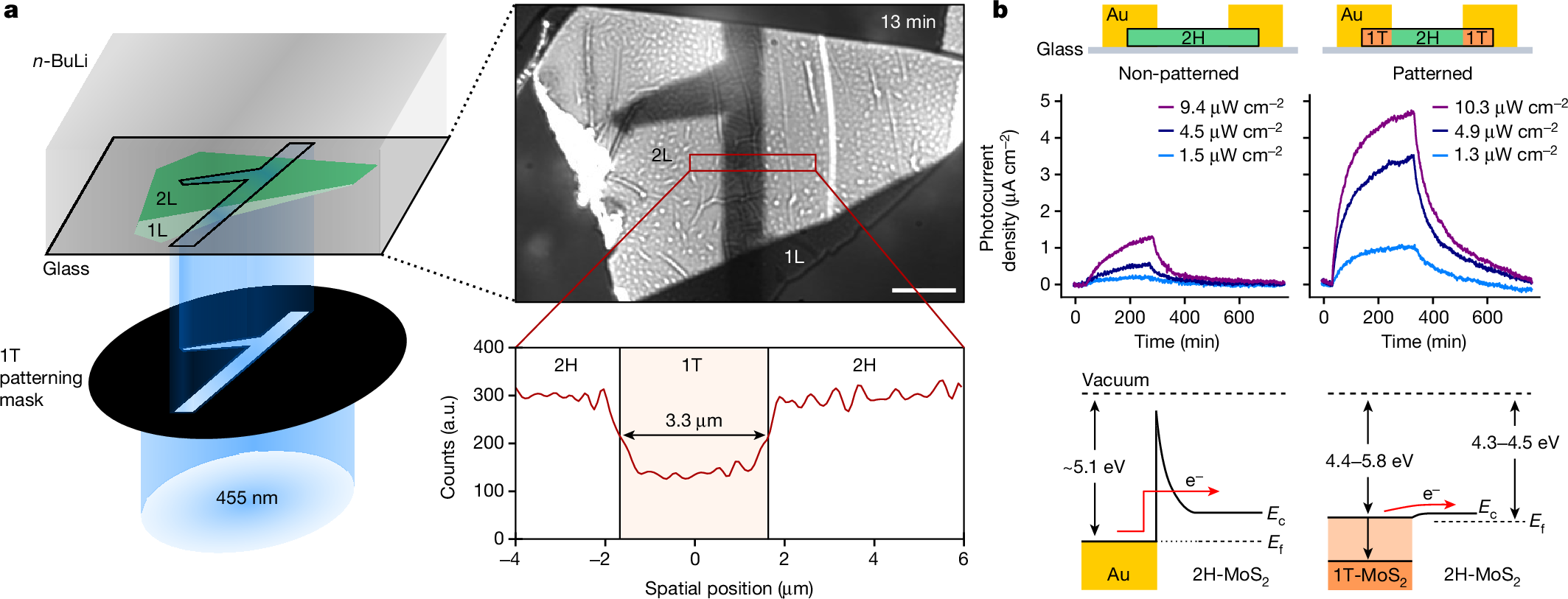

Fig. 3: Photoredox phase patterning on MoS2.
From: Photoredox phase engineering of transition metal dichalcogenides
a, Schematic of the photoredox phase patterning of a 1T phase pattern on 1L- and 2L-MoS2 (left). The image of the patterned flake (right) and the average across the red rectangle show the profile of the patterned 1T phase. b, Response comparison of non-patterned (2H) and photoredox-phase-patterned (1T/2H/1T) 1L-MoS2 photodetector. The bottom panel shows the ohmic-like transport behaviour by photoredox phase patterning. Scale bar, 5 μm (a).
