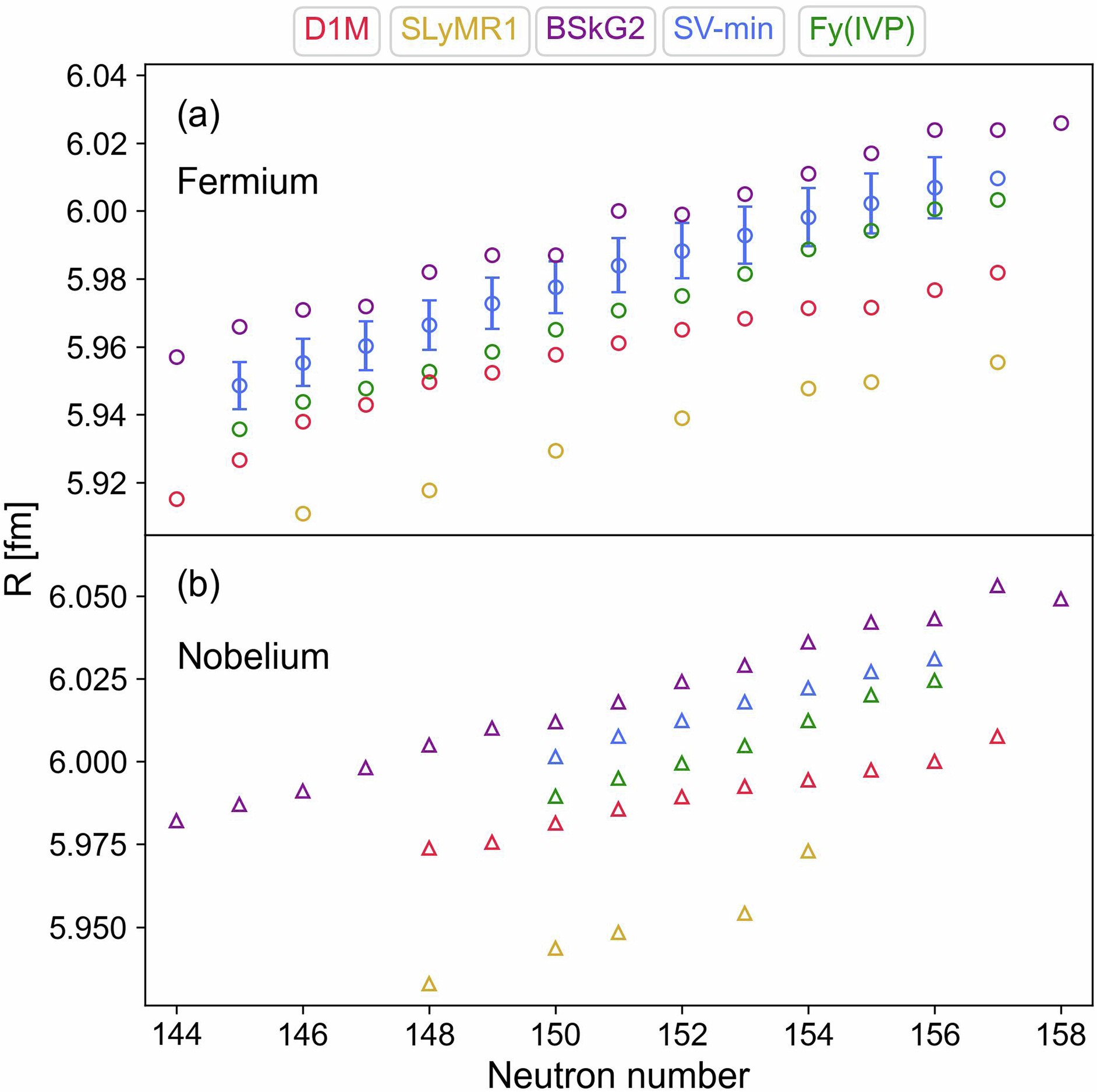

Extended Data Fig. 3: Absolute charge r.m.s. radii as predicted by the different investigated nuclear EDFs.
From: Smooth trends in fermium charge radii and the impact of shell effects
Uncertainties (one standard deviation) for the fermium isotopes are shown for SV-min by error bars. They can be considered to be typical for most models.
