Extended Data Fig. 8: The narrow PCE-degradation gap between the two working modes. | Nature

Extended Data Fig. 8: The narrow PCE-degradation gap between the two working modes.

From: Strain regulation retards natural operation decay of perovskite solar cells

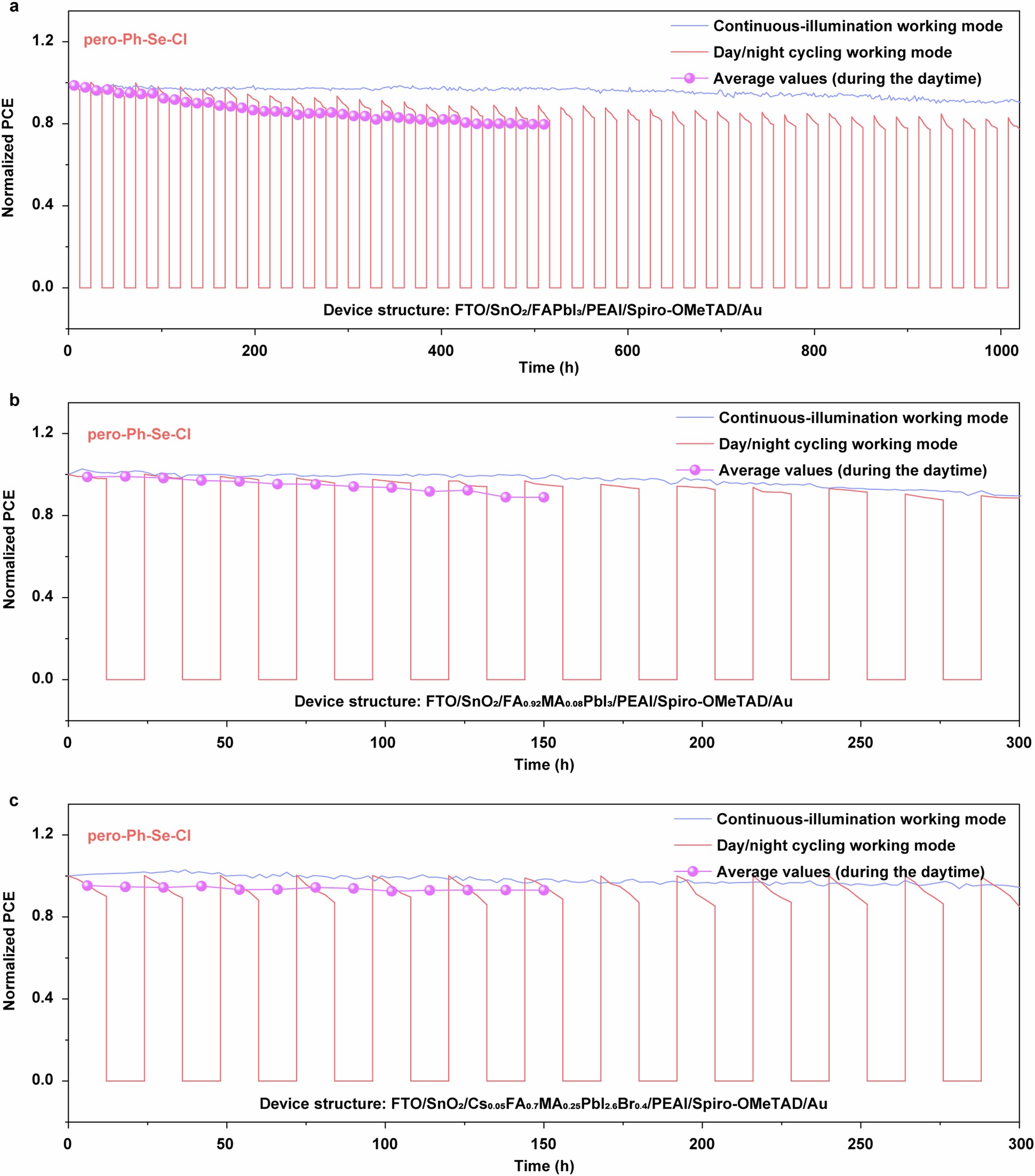

Extended Data Fig. 8: The narrow PCE-degradation gap between the two working modes.The alternative text for this image may have been generated using AI.

a-c, PCE tracking of the pero-SCs with Ph-Se-Cl modification based on a, FAPbI3, b, FA0.92MA0.08PbI3 and c, Cs0.05FA0.7MA0.25PbI2.6Br0.4 three different active layer compositions under the continuous-illumination and day/night cycling working modes.
