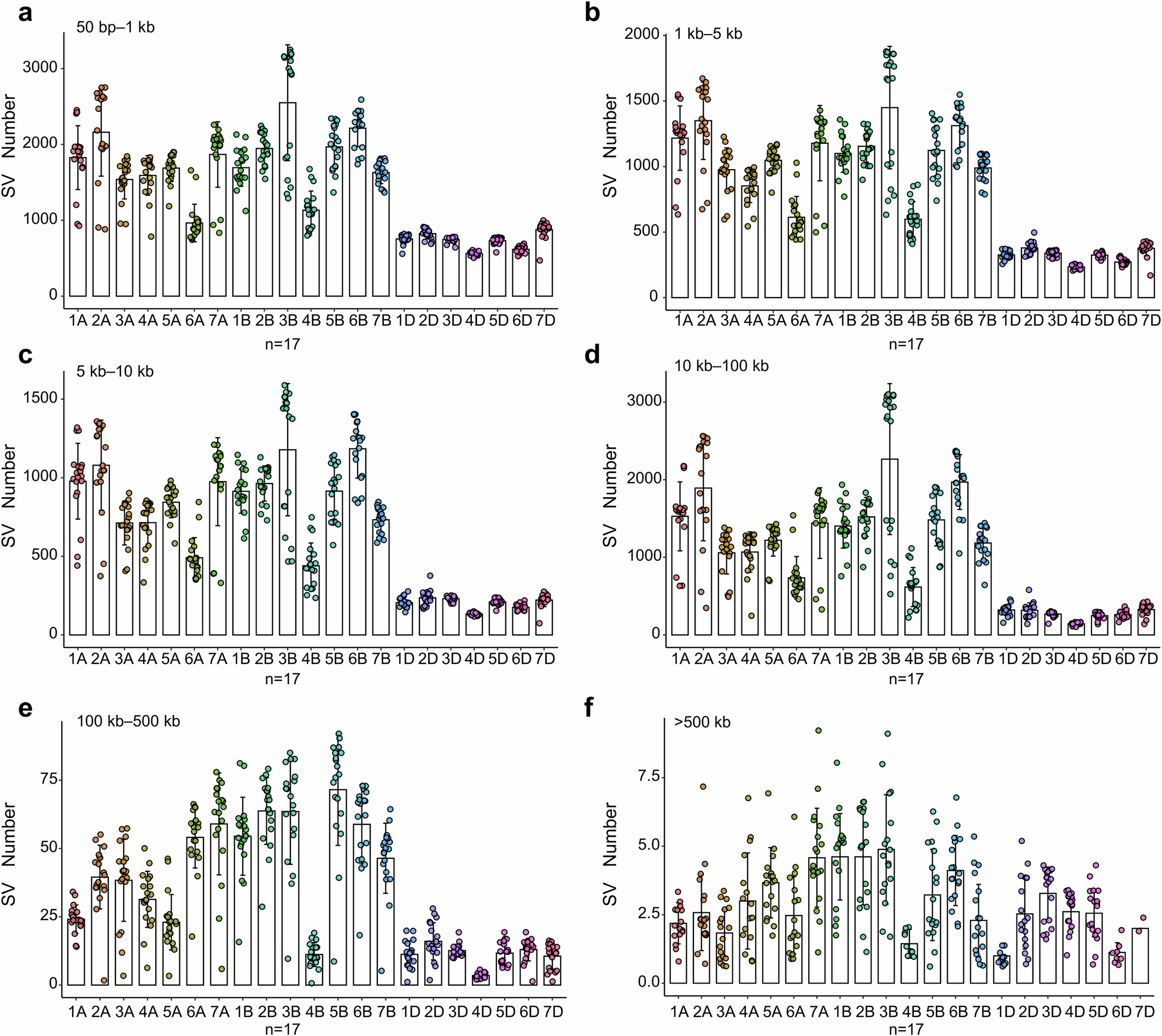

Extended Data Fig. 5: Distribution of SVs on each chromosome under different length intervals.
From: Pan-genome bridges wheat structural variations with habitat and breeding
The B subgenome shows significantly higher density of SVs in the 50 bp–500 kb range compared to the A and D subgenomes, except for the 6A and 4B regions. The D subgenome has a lower density of SVs in this range. No significant difference in the number of SVs was observed among chromosomes for length ranges above 500 kb. a, 50 bp–1 kb; b, 1 kb−5 kb; c, 5 kb–10 kb; d, 10 kb–100 kb; e, 100 kb–500 kb; f, >500 kb.
